| Name: | Polycrystalline Diamond Drill Bits | Cutting Material: | TSP |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | TSP: | Thermal Stable Polycrystalline |
| Maximum Temperature: | 1200 ℃ | Formation: | Medium Hard To Hard |
| High Light: | pdc drill bits,impregnated diamond bit |
||
Thermal Stable Polycrystalline Bit , TSP Bit , Ballaset Cutters , Martrix Body

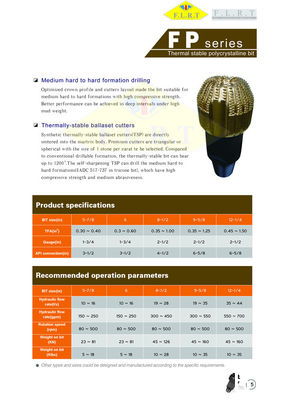

FP series
Thermal stable polycrystalline bit
* Medium hard to hard formation drilling
Optimized crown profile and cutters layout made the bit suitable for medium hard to hard formations with high compressive strength. Better performance can be achicvend in deep intervals under high mud weight.
* Thermally-stable ballaset cutters
Synthetic thermally-stable ballaset cutters(TSP) are directly sintered into the martrix body. Premium cutters are triangular or spherical with the size of stone per carat to be selected. Compared to conventional drillable formation, the thermally-stable bit can bear up to 1200 ℃ . The self-sharpening TSP can drill the medium hard to hard formations(1 ADC 517-737 in tricone bit), which have high compressive strength and medium abrasiveness.
| Product Specifications | |||||||
| Bit Size (in.) | 5 7/8 | 6 | 8 1/2 | 9 5/8 | 12 1/4 | ||
| TFA(in2) | 0.30~0.40 | 0.3~0.60 | 0.35~1.00 | 0.35~1.25 | 0.45~1.50 | ||
| Gauge(in) | 1 3/4 | 1 3/4 | 2 1/2 | 2 1/2 | 2 1/2 | ||
| API connection(in) | 3 1/2 | 3 1/2 | 4 1/2 | 6 5/8 | 6 5/8 | ||
| Recommended Operation Parameters | |||||||
| Bit Size (in.) | 5 7/8 | 6 | 8 1/2 | 9 5/8 | 12 1/4 | ||
| Hydraulic Flow Rate(L/s) | 10～16 | 10～16 | 19～28 | 19～35 | 35～44 | ||
| Hydraulic Flow Rate(Gpm) | 150～250 | 150～250 | 300～450 | 300～550 | 550～700 | ||
| Rotation Speed(Rpm) | 80～500 | 80～500 | 80～500 | 80～500 | 80～500 | ||
| WOB(KN) | 23～81 | 23～81 | 45～126 | 45～160 | 45～160 | ||
| WOB(KIbs) | 5～18 | 5～18 | 10～28 | 10～35 | 10～35 | ||
* Other types and sizes could be designed and manufactured according to the specific requirments.
