Product Details:
Payment & Shipping Terms:
|
Name: | Three Cone Bit | Cutting Material: | TCI |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
IADC: | 517 | Supplementary Features 1: | G : Reinforced Gauge Protection |
Color: | Blue | ||
High Light: | three cone bit,tricone rock roller bits |

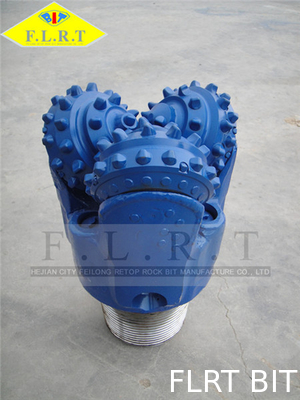

9 1/2" FSA517G 11 , TCI Bit , Sealed Bearing , Journal Bearing , Tricone Roller Bit
PRODUCT SPECIFICATIONS
Bit Size : 9 1/2 inch
IADC : 517
SERIES : FSA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 6 5/8 inch API REG PIN
Nozzle : three jet (side) nozzles
Bit Weight : 75 kgs
SIZE AVAILABLE
From 3 7/8inch to 36inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code | 415 |
435 445 |
515 525 |
535 545 |
615 625 |
635 | |
WOB | KN/mm(Bit Dia.) | 0.35~0.95 | 0.35~0.95 | 0.4~0.7 | 0.4~0.7 | 0.45~1.1 | 0.5~1.2 |
Lb/in. (Bit Dia.) | 2000~5428 | 2000~5428 | 2285~4000 | 2285~4000 | 2571~6285 | 2857~6857 | |
Rotation Speed (Rpm) | 150~60 | 150~60 | 140~80 | 120~80 | 110~60 | 100~50 |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
(1) Cutting Structure of this series tricone rock bit :
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.
(2) Gauge Structure of this series tricone rock bit :
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
