Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Journal Bearing | Cutting Material: | TCI |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | IADC: | 517 |
Supplementary Features 1: | G : Reinforced Gauge Protection | Name: | TCI Tricone Bit |
High Light: | three cone bit,tricone rock roller bits |

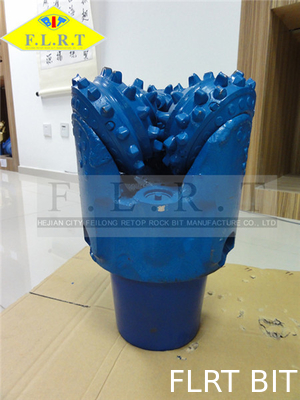

9 1/2" FSA517G 09, Sealed Journal Bearing , Reinforced Gage Protection , Tricone Roller Bit ,
PRODUCT SPECIFICATIONS
Bit Size : 9 1/2"
IADC : 517
SERIES : FA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 6 5/8 inch API REG PIN
Nozzle : three jet (side) nozzles
Bit Weight : 75 kgs
SIZE AVAILABLE
From 3 7/8inch to 36inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code | 415 |
435 445 |
515 525 |
535 545 |
615 625 |
635 | |
WOB | KN/mm(Bit Dia.) | 0.35~0.95 | 0.35~0.95 | 0.4~0.7 | 0.4~0.7 | 0.45~1.1 | 0.5~1.2 |
Lb/in. (Bit Dia.) | 2000~5428 | 2000~5428 | 2285~4000 | 2285~4000 | 2571~6285 | 2857~6857 | |
Rotation Speed (Rpm) | 150~60 | 150~60 | 140~80 | 120~80 | 110~60 | 100~50 |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
The medium hard formation TCI tricone bits features robust chisel tungsten carbide inserts on the heel row and conical on the inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing
durability.
