75 Kgs Tricone Rock Bit / Rock Drilling Tools 9 1/2" FSA517G For Mine Drilling

China 75 Kgs Tricone Rock Bit / Rock Drilling Tools 9 1/2" FSA517G For Mine Drilling supplier

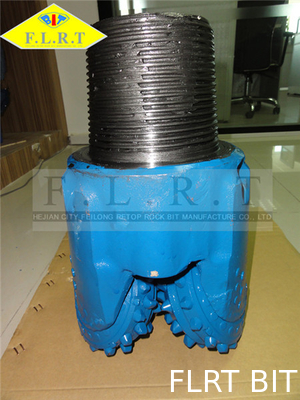

Large Image :  75 Kgs Tricone Rock Bit / Rock Drilling Tools 9 1/2" FSA517G For Mine Drilling

Product Details:

Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 9 1/2" FSA517G

Payment & Shipping Terms:

Minimum Order Quantity: 1~10pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 300pcs per quarter
Contact Now
Detailed Product Description
Bearing Type: Sealed Friction Bearing Circulation: Fluid
Standard: API-7-1, ISO 9001:2008 Series: FSA
IADC: 517 G: Reinforced Gauge Protection
Connection: 6 5/8" API REG PIN

9 1/2" FSA517G 05, TCI Bit , Sealed Bearing , Tricone Roller Bit



PRODUCT SPECIFICATIONS



Bit Size : 9 1/2 inch

IADC : 517

SERIES : Fa

Tooth type : ( TCI ) Tungsten Carbide Insert

Connection : 6 5/8 inch API REG PIN

Nozzle : three jet (side) nozzles

Bit Weight : 75 kgs



SIZE AVAILABLE



From 3 7 / 8inch to 36inch



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 415

435

445

515

525

535

545

615

625

635
WOB KN/mm(Bit Dia.) 0.35~0.95 0.35~0.95 0.4~0.7 0.4~0.7 0.45~1.1 0.5~1.2
Lb/in. (Bit Dia.) 2000~5428 2000~5428 2285~4000 2285~4000 2571~6285 2857~6857
Rotation Speed (Rpm) 150~60 150~60 140~80 120~80 110~60 100~50



The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.



Medium formation TCI tricone bits:


The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.


Roller Cone Bit Seal Definitions



In a rotating bearing, the two working sides of a seal are called the static energizer and the dynamic wear face. These two parts are directly opposite each other, with the energizing portion bearing on the gland and the dynamic wear face bearing against the rotating unit. For the energizing portion of the seal to function properly, it must have a surface against which to react. This is provided by a channel-shaped groove called a seal gland.



The wearing portion of the seal must have the capability to withstand the heat and abrasion generated as the rotating surface passes over it. The energizer, when functioning correctly, is not a high-wear area. Ideally, it simply bears against the gland and provides the pushing energy that maintains firm contact between the wear surface and rotating cone.
