9 5/8" FSA517GT Tricone Drill Bit / Three Cone Bit With Trimming Cutter

China 9 5/8" FSA517GT Tricone Drill Bit / Three Cone Bit With Trimming Cutter supplier

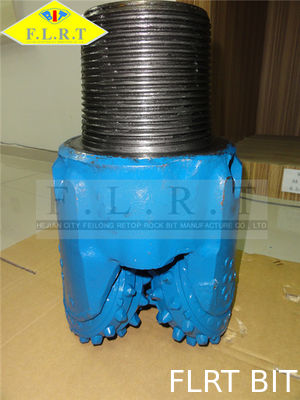

Large Image :  9 5/8" FSA517GT Tricone Drill Bit / Three Cone Bit With Trimming Cutter

Product Details:

Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 9 5/8" FSA517G

Payment & Shipping Terms:

Minimum Order Quantity: 1~5pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 300pcs per quarter
Contact Now
Detailed Product Description
Bearing Type: Sealed Friction Bearing Name: Tungsten Carbide Insert Bit
Standard: API-7-1, ISO 9001:2008 Series: FSA
IADC: 517 G: Reinforced Gauge Protection
T: Trimming Cutter

9 5/8" FSA517G, TCI Bit , Sealed Friction Bearing , Three Cone Roller Bit , Tricone Drill Bit





RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 417

437

447

517

527

537

547

617

627

637
WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 140~60 125~50 110~50 100~40 80~40



The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.







ROLLER CONE BIT CONE DESIGN



In some formations, it is advantageous to design the cones and their configuration so that they do not rotate evenly but that they slip during rotation. This Cone slippage, as it is called, allows a rock bit to drill using a scraping action, as well as the normal grinding or crushing action.



Cone slippage can be designed into the bit in two ways. Since cones have two profiles: the inner and the outer cone profile, a cone removed from the bit and placed on a horizontal surface can take up two positions . It may either roll about the heel cone or the nose cone. When the cone is mounted on a journal it is forced to rotate around the centre of the bit. This “unnatural” turning motion forces the inner cone to scrape and the outer cone to gouge. Gouging and scraping help to break up the rock in a soft formation but are not so effective in harder formations, where teeth wear is excessive.
