Product Details:
Payment & Shipping Terms:
|
| Body Type: | Steel | Cutting Material: | PDC |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Name: | PDC Bit For Well Drilling |
| Cutters Layout: | Double Row | Upper Drilling: | Yes |
| Connection (API REG.PIN): | 6 5/8” | ||
| High Light: | Double Row Cutters impregnated diamond bit,Heavy Short Gauges natural diamond bit,11 5/8" Steel Body PDC Drill Bits |
||

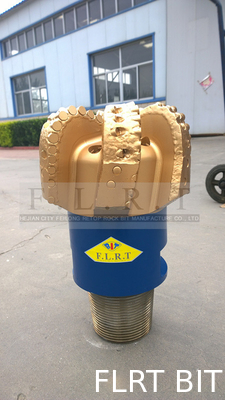

11 5/8" Steel Body PDC Bit , Double row cutters , Heavy short gauges , Upper drilling
FS series
Steel body PDC drill bit
* Soft to medium hard formation drilling
Medium short parabolic crown profile and medium cutter density helps to obtain better ROP in soft to medium hard formation with lower compressive strength and thin hard layers.
* Gauge protection
Gauge cutter improves the gage wear-resistance to prolong the service life of the bit.
* Unique backrack design
Unique backrack design helps to reduce the bit torque and increase its aggressiveness.
API PDC bit Description
Long parabolic crown profile, blade cutter setting.
16mm PDC cutters, light cutter density.
Interchangeable screw nozzles.
Under-cut shank maximizes junk slot area for better bit cleaning. high tilt nozzles for improved hydraulics and ROP.
Suitable for soft to medium formations.
Can be used on rotary or down hole motor.
High HIS is recommended.
