Product Details:
Payment & Shipping Terms:
|
Body Type: | Steel | Cutting Material: | PDC |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FS |
Size: | 8 1/2" | Reaming Function: | Yes |
Gauge: | Heavy And Short | ||
High Light: | 12 1/4 FS19053I pdc drill bits,Upper Drilling Cutters natural diamond bit,API-7-1 Standard FLRT PDC Diamond Bit |

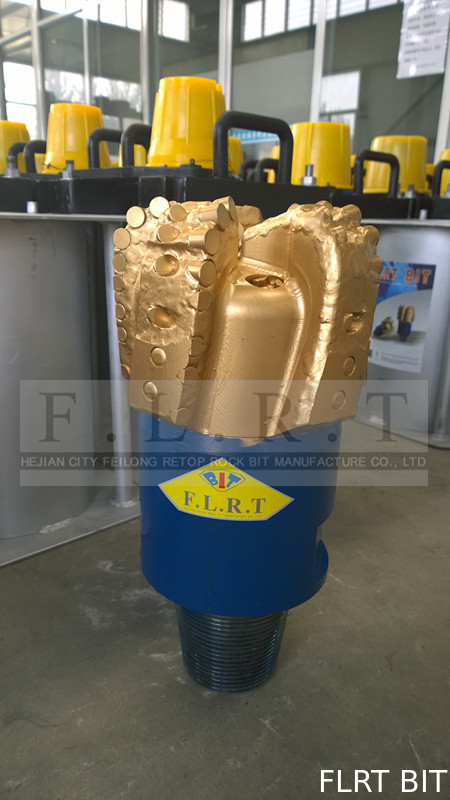

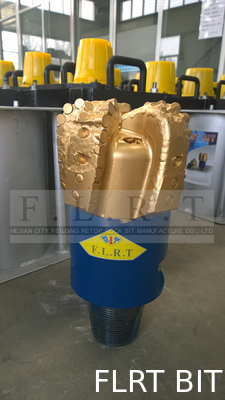

8 1/2" Steel Body PDC Bit , Inclined Gage , Gauge Protection , Upper Drilling Cutters
FS series
Steel body PDC drill bit
* Gauge protection
Gauge cutter improves the gage wear-resistance to prolong the service life of the bit.
* Unique backrack design
Unique backrack design helps to reduce the bit torque and increase its aggressiveness.
* Heavy short gage
design is suitable for angle building and derectional drilling.
* Upper drilling
makes the PDC bit more suitable for various drilling processes to prevent sticking.
Recommended Operation Parameters | |||
Bit Size (in.) | 8 1/2 | 12 1/4 | 17 1/2 |
Hydraulic Flow Rate(L/s) | 22~32 | 38~60 | 60~91 |
Hydraulic Flow Rate(Gpm) | 350~500 | 550~850 | 950~1450 |
Rotation Speed(Rpm) | 60~350 | 60~300 | 60~300 |
WOB(KN) | 14~67 | 18~98 | 18~134 |
WOB(KLbs) | 3~15 | 4~22 | 4~30 |
Maximum WOB(KN) | 67 | 98 | 134 |
Maximum WOB(KLbs) | 15 | 22 | 30 |
Contact Person: Jade
Tel: 0086-10-63405086
