Product Details:
Payment & Shipping Terms:
|
| Name: | Matrix Body PDC Bit | Cutting Material: | Natural Diamond |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Color: | Golden |
| Crown Profile: | Shallow | Formation: | Extremely Hard And Abrasive |
| High Light: | pdc drill bits,natural diamond bit |
||

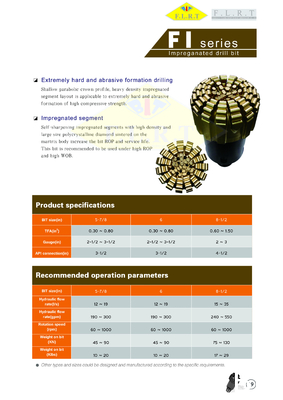

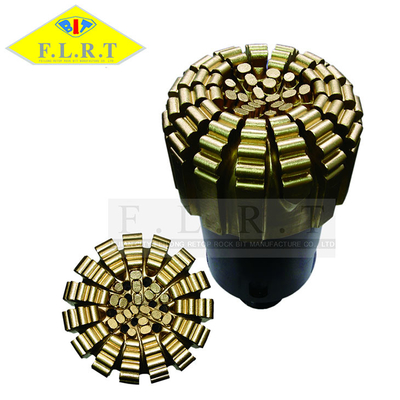

Impregnated Diamond Bit , FI Series , API 7-1 , High ROP , High WOB , Natural Diamond Segment
FI series
Impregnated diamond drill bit
*Extremely hard and abrasive formation drilling
Shallow parabolic crown profile, heavy density impregnated segment layout is applicable to extremely hard and abrasive formation of high compressive strength.
*Impregnated segment
Self-sharpening impregnated segments with high density and large size polycrystalline diamond sintered on the martrix body increase the bit ROP and service life. This bit is recommended to be used under high ROP and high WOB.
| Product Specifications | |||
| Bit size(in.) | 5 7/8 | 6 | 8 1/2 |
| TFA(in2) | 0.30～0.80 | 0.30～0.80 | 0.60～1.50 |
| Gauge(in) | 2 1/2~3 1/2 | 2 1/2~3 1/2 | 2~3 |
| API reg. pin(in) | 3 1/2 | 3 1/2 | 4 1/2 |
| Recommended Operation Parameters | ||||
| Bit size(in.) | 5 7/8 | 6 | 8 1/2 | |
| Hydraulic flow rate(L/s) | 12~19 | 12~19 | 15~35 | |
| Hydraulic flow rate(gpm) | 190~300 | 190~300 | 240~550 | |
| Rotation spped(rpm) | 60~1000 | 60~1000 | 60~1000 | |
| WOB(KN) | 45~90 | 45~90 | 75~130 | |
| WOB(KLbs) | 10~20 | 10~20 | 17~29 | |
