Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Journal Bearing With Gauge Protection | Cutting Material: | TCI |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
Application 1: | Oil Well Drilling | Application 2: | Gas Well Drilling |
Application 3: | Geothermal Well Drilling | IADC: | 537 |
High Light: | tungsten carbide insert bit,tungsten carbide drill bits |

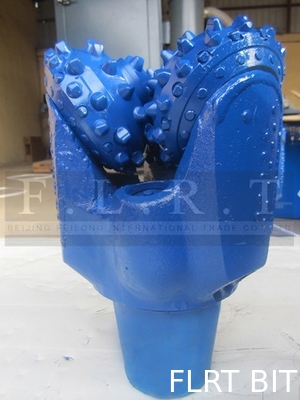

8 1/2" FA537GT , TCI Tricone Bit , Sealed Journal Bearing , With Gage Protection
PRODUCT SPECIFICATIONS
Bit Size : 8 1/2 inch (215.9mm)
IADC : 537
SERIES : FA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 4 1/2 inch API REG PIN
Nozzle : three jet (side) nozzles
Bit Weight : 40kgs
RECOMMENDED ROCK FORMATIONS
Adapted to be used in medium soft with harder, more abrasive streaks(hard shale, mudstone, soft limestone, sands etc)
SIZE AVAILABLE
Form 7 7/8inch to 17 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637
|
|
WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
