High Efficiency Milled Tooth Bit 13 5/8" FSA517G HDD Drilling Tools API-7-1 Standard

High Efficiency Milled Tooth Bit 13 5/8" FSA517G HDD Drilling Tools API-7-1 Standard
High Efficiency Milled Tooth Bit 13 5/8" FSA517G HDD Drilling Tools API-7-1 Standard

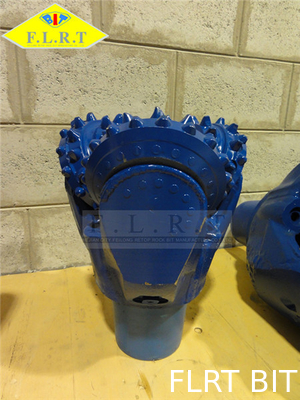

Large Image :  High Efficiency Milled Tooth Bit 13 5/8" FSA517G HDD Drilling Tools API-7-1 Standard

Product Details:

Place of Origin: China
Brand Name: FLRT
Certification: API-7-1 , ISO 9001:2008
Model Number: 13 5/8" FSA517G

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 200pcs per quarter
Detailed Product Description
Bearing Type: Sealed Journal Bearing With Gauge Protection Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FSA
Application 1: Vertical Well Drilling Application 2: Gas Well Drilling
Application 3: Geothermal Well Drilling Application 4: HDD Drilling
High Light:

tungsten carbide drill bits

,

oil well drill bit

13 5/8" FSA517G , TCI Tricone Bit , TCI Bit , Sealed Journal Bearing , Tricone Rock Bit , IADC 517





SIZE AVAILABLE


Form 3 7/8inch to 18 1/2inch



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 417

437

447

517

527

537

547

617

627

637
WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 140~60 125~50 110~50 100~40 80~40



The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.







Roller Cone Bit Bearing Seals



On a purely practical level, bearing seals have two functions: to prevent foreign materials, such as mud, cuttings, chemicals, and water, from entering the bearings and to prevent bearing lubricant from escaping the bit.



Visualize the difference in the nature of these two duties. On the interior side, the seal is excluding clean, functional lubricant from escaping the bit, while on the exterior side, the seal is excluding dirt and chemicals from penetrating the bit. The separation of these two extremely different functions takes place at a small point between the two sides of a seal. If either of these functions breaks down, the bearings and the bit could be destined for failure.
