Blue Roller Cone Drill Bit 13 5/8" FSA517G , TCI Drill Bit For Water Wells

China Blue Roller Cone Drill Bit 13 5/8" FSA517G , TCI Drill Bit For Water Wells supplier

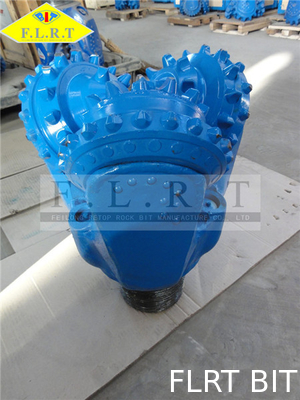

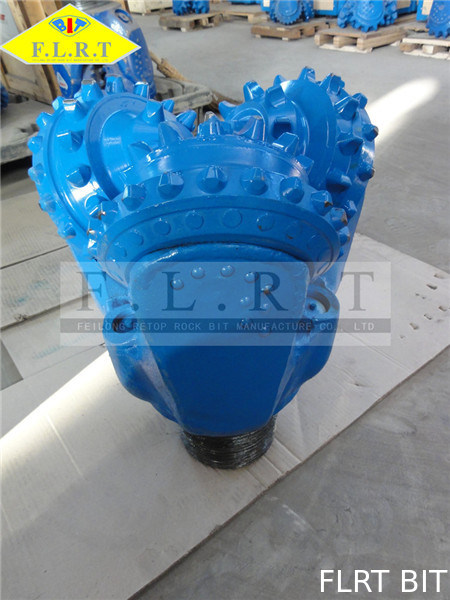

Large Image :  Blue Roller Cone Drill Bit 13 5/8" FSA517G , TCI Drill Bit For Water Wells

Product Details:

Place of Origin: China
Brand Name: FLRT
Certification: API-7-1 , ISO 9001:2008
Model Number: 13 5/8" FSA517

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 200pcs per quarter
Contact Now
Detailed Product Description
Bearing Type: Rubber Sealed Roller Bearing With Gauge Protection Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FSA
Application 1: Oil Well Drilling Application 2: Geothermal Well Drilling
IADC: 517 Color: Blue

13 5/8" FSA517G , TCI Tricone Bit , TCI Bit , Sealed Journal Bearing



SIZE AVAILABLE
Form 3 7/8inch to 18 1/2inch



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code 417

437

447

517

527

537

547

617

627

637
WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 140~60 125~50 110~50 100~40 80~40



The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.





Journal bearing
- The bearing load carrying surface
- Journal angle is the angle formed by a line perpendicular to the axis of the journal and the axis of the bit
- Magnitude affect the size of the cone
- Increase in angle decrease cone size
- The smaller the angle the greater the gouging and scraping action
- Optimum journal angle for soft and hard rock bits are 33 and 36
