Product Details:
Payment & Shipping Terms:
|
| Name: | Tricone Rock Roller Bits | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
| IADC: | 637 | Supplementary Features: | G : Reinforced Gauge Protection |
| Insert Shape: | Conical | Cooling System: | Fluid Circulation |
| TCI: | Tungsten Carbide Insert | ||
| High Light: | 12 1/4" Tricone Rock Bit,Conical Insert Shape Tricone Rock Bit,Fluid Cooling System Tricone Rock Bit |
||

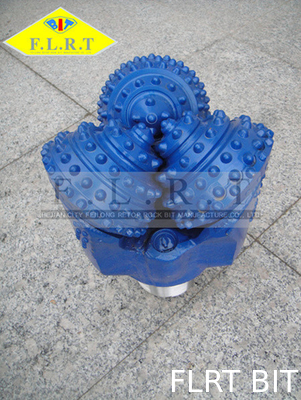

12 1/4" FA637G , Rock Bit , Fluid Cooling System , Conical Insert Shape , TCI Bit , Tricone Bit
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
|
Types & IADC Code |
417 |
437 447 |
517 527 |
517 527 |
537 547 |
617 627 |
637
|
|
|
WOB |
KN/mm(Bit Dia.) |
0.4~0.9 |
0.4~0.9 |
0.35~1.0 |
0.35~1.0 |
0.5~1.0 |
0.6~1.1 |
0.7~1.2 |
|
Lb/in. (Bit Dia.) |
2285~5142 |
2285~5142 |
2000~5714 |
2000~5714 |
2857~5714 |
3428~6285 |
4000~6857 |
|
|
Rotation Speed (Rpm) |
140~60 |
240~70 |
125~50 |
~60 |
110~50 |
100~40 |
80~4 |
|
There have been a number of developments in bearing technology used in rock bits :
The bearing assemblies of the first roller cone bits were open to the drilling fluid.
Sealed bearing bits were introduced in the late 1950s, to extend the bearing life of insert bits.
The sealing mechanism prevents abrasive solids in the mud from entering and causing excess frictional resistance in the bearings.
The bearings are lubricated by grease which is fed in from a reservoir as required.
Some manufacturers claim a 25% increase in bearing life by using this arrangement .
