Product Details:
Payment & Shipping Terms:
|
| Name: | TCI Drill Bit | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FG |
| IADC: | 435G | Supplementary Features: | G : Reinforced Gauge Protection |
| Drilling Type: | Rotary Drilling | Insert Shape: | Chisel |
| High Light: | FG435G Tricone Rock Bit,311.2mm Tricone Rock Bit,Water Well Drilling Tricone Rock Bit |
||

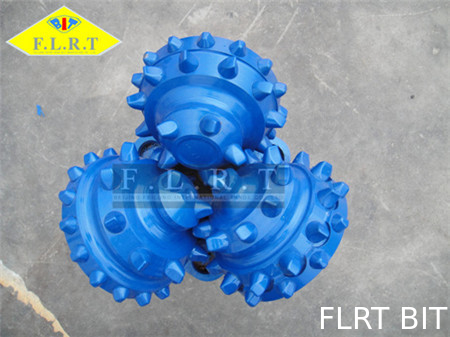

12 1/4" FG435G , Tricone Rock Bit , Water Well Drilling Bit , 311.2mm TCI Bit
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 415 |
435 445 |
515 525 |
535 545 |
615 625 |
635 | |
| WOB | KN/mm(Bit Dia.) | 0.35~0.95 | 0.35~0.95 | 0.4~0.7 | 0.4~0.7 | 0.45~1.1 | 0.5~1.2 |
| Lb/in. (Bit Dia.) | 2000~5428 | 2000~5428 | 2285~4000 | 2285~4000 | 2571~6285 | 2857~6857 | |
| Rotation Speed (Rpm) | 150~60 | 150~60 | 140~80 | 120~80 | 110~60 | 100~50 | |
The bits are further classified based on their internal bearings. Each bit has three rotating cones and each one will rotate on its own axis during drilling. While the bits are fixed to the drilling rigs, the rotation of the drill pipe will be in a clockwise direction and the roller cones are rotated in an anti-clockwise direction. Each roller cone is rotated on its own axis with the help of the bearing. Again, the bearings are classified mainly into three types: Open bearing bits, Sealed Bearing Bits and Journal Bearing bits.
