13 5/8 Inch Tricone Roller Bit Reinforced Gauge Protection ISO 9001 Approved

13 5/8 Inch Tricone Roller Bit Reinforced Gauge Protection ISO 9001 Approved
13 5/8 Inch Tricone Roller Bit Reinforced Gauge Protection ISO 9001 Approved

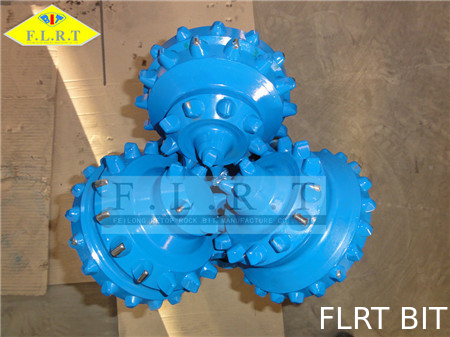

Large Image :  13 5/8 Inch Tricone Roller Bit Reinforced Gauge Protection ISO 9001 Approved

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 13 5/8" FSG517G
Payment & Shipping Terms:
Minimum Order Quantity: 1~5pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 300pcs per quarter
Detailed Product Description
Bearing Type: Sealed Roller Bearing Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FSG
IADC: 515 G: Reinforced Gauge Protection
Color: Blue
High Light:

roller cone drill bit

,

tricone rock roller bits

13 5/8" FSG515G , TCI Bit , Sealed Roller Bearing , Tricone Roller Bit , Reinforced Gauge Protection



PRODUCT SPECIFICATIONS



Bit Size : 13 5/8 inch ( 346.1mm)

IADC : 515

SERIES : FSG

Tooth type : ( TCI ) Tungsten Carbide Insert

Connection : 6 5/8 inch API REG PIN

Nozzle : three jet (side) nozzles



SIZE AVAILABLE



From 3 7/8inch to 36inch



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code 415

435

445

515

525

535

545

615

625

635
WOB KN/mm(Bit Dia.) 0.35~0.95 0.35~0.95 0.4~0.7 0.4~0.7 0.45~1.1 0.5~1.2
Lb/in. (Bit Dia.) 2000~5428 2000~5428 2285~4000 2285~4000 2571~6285 2857~6857
Rotation Speed (Rpm) 150~60 150~60 140~80 120~80 110~60 100~50

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.





ROLLER CONE BIT CONE DESIGN



All three cones have the same shape except that the No. 1 cone has a spear point. One of the basic factors to be decided, in the design of the cones, is the journal or pin angle. The journal angle is formed between the axis of the journal and the horizontal. Since all three cones fit together, the journal angle specifies the outside contour of the bit. The use of an oversize angle increases the diameter of the cone and is most suitable for soft formation bits. Although this increases cone size, the gauge tip must be brought inwards to ensure the bit drills a gauge hole.



One important factor which affects journal angle is the degree of meshing or interfit (i.e. the distance that the crests of the teeth of one cone extend into the grooves of the other). The amount of interfit affects several aspects of bit design.



1. It allows increased space for tooth depth, more space for bearings and greater cone thickness
2. It allows mechanical cleaning of the grooves, thus helping to prevent bit balling
3. It provides space for one cone to extend across the centre of the hole to prevent coring effects
4. It helps the cutting action of the cones by increasing cone slippage.
