| Brand Name: | FLRT |
| Model Number: | 10 5/8 FA537G |
| MOQ: | 20pcs |
| Supply Ability: | 300pcs per quarter |

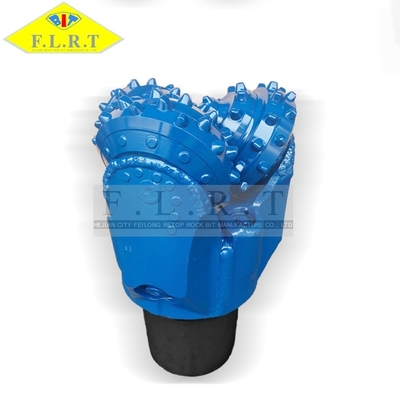

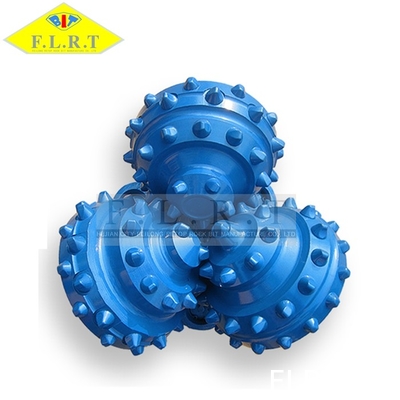

10 5/8" FA537G , Rock Bit, Water Well Drilling Bit , Medium Hard Formation , Tricone Drilling Bit
PRODUCT SPECIFICATIONGS
Bit Size : 10 5/8 inch (269.9mm)
IADC : 5 3 7
SERIES : FA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 6 5/8 inch API REG PIN
Nozzle : Three jet(side) nozzles,
Bit Weight: 80kgs
RECOMMENDED ROCK FORMATIONS
Adapted to be used in medium soft with harder, more abrasive streaks(hard shale, mudstone, soft limestone, sands etc)
SIZE AVAILABLE
Form 3 7/8inch to 17 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 417 |
437 447 |
517 527 |
517 527 |
537 547 |
617 627 |
637
|
|
| WOB | KN/mm(Bit Dia.) | 0.4~0.9 | 0.4~0.9 | 0.35~1.0 | 0.35~1.0 | 0.5~1.0 | 0.6~1.1 | 0.7~1.2 |
| Lb/in. (Bit Dia.) | 2285~5142 | 2285~5142 | 2000~5714 | 2000~5714 | 2857~5714 | 3428~6285 | 4000~6857 | |
| Rotation Speed (Rpm) | 140~60 | 240~70 | 125~50 | ~60 | 110~50 | 100~40 | 80~4 | |
