Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Friction Bearing | Cutting Material: | TCI |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
IADC: | 637 | Supplementary Features: | G : Reinforced Gauge Protection |
Bit Size: | 311.2mm | Connection: | 6 5/8" API Reg. PIN |
High Light: | IADC 637G Tungsten Carbide Insert Bit,Hard Formation hdd drill bits,Tool Parts Tricone Rock Bit |

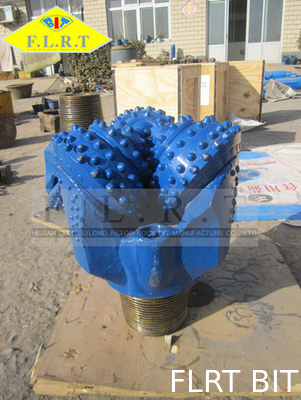

IADC 637G , Tricone Bit , Drilling Bit , Hard Formation , TRC Bit , Tungsten Carbide Insert Bit
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code | 417 |
437 447 |
517 527 |
517 527 |
537 547 |
617 627 |
637
|
|
WOB | KN/mm(Bit Dia.) | 0.4~0.9 | 0.4~0.9 | 0.35~1.0 | 0.35~1.0 | 0.5~1.0 | 0.6~1.1 | 0.7~1.2 |
Lb/in. (Bit Dia.) | 2285~5142 | 2285~5142 | 2000~5714 | 2000~5714 | 2857~5714 | 3428~6285 | 4000~6857 | |
Rotation Speed (Rpm) | 140~60 | 240~70 | 125~50 | ~60 | 110~50 | 100~40 |
80~4 |
Roller Cone Bit Tips
The bits are sub divided into different categories depending on soil condition. There are three main categories: soft, medium and hard formation bits. Soft formation rock bits are used in unconsolidated sands, clays, soft lime stones, red beds and shale. Medium formation bits are used in calcites, dolomites, lime stones, and hard shale, while hard formation bits are used in hard shale, calcites, mudstones, cherty lime stones and hard and abrasive formations.
