Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Journal Bearing | Cutting Material: | Steel Tooth |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
IADC: | 137 | Application 1: | Oil Well Drilling |
Application 2: | Gas Well Drilling | ||
High Light: | Mill Tooth Tricone Bit 11 5/8",FA137 water well drill bits,Oil Well Drilling Tooth Tricone Bit |

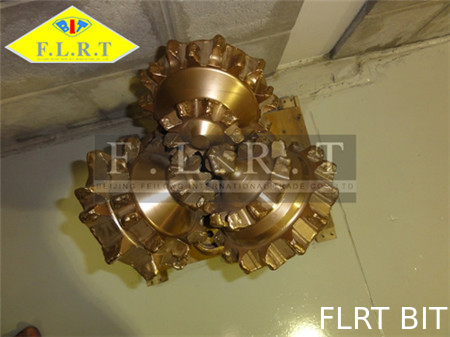

11 5/8" FA137 , Rock Bit, Oil Well Drilling , Gas Well Drilling , Tooth Bit
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code |
116 117 |
126 127 |
136 137 |
216 217 |
246 247 |
326 327 |
|
WOB | KN/mm(Bit Dia.) | 0.48~1.0 | 0.48~1.0 | 0.48~1.0 | 0.4~1.0 | 0.4~1.0 | 0.55~0.85 |
Lb/in. (Bit Dia.) | 2742~5714 | 2742~5714 | 2742~5714 | 2285~5714 | 2285~5714 | 3140~4860 | |
Rotation Speed (Rpm) | 160~80 | 150~70 | 130~60 | 100~60 | 80~50 | 60~45 |
Bearing and seal system:
Sealed roller/journal bearing structure with rollers arraged in grooves recessed in cone body and bigger bearing journal can be better adopted with high WOB and hing RPM
Premium HNBR O-ring with optical seal compression and curved seal structure as well as advanced special grease can limit presure differential and prevent drilling fluid from entering the lubrication system and thus strongly assure the lubrication of the bearing.
Applicable formation:
Very soft to medium soft formation with low compressive strength and high drillability, such as mudstone,loose sands, soft limestone, shale layer
