Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Roller | Cutting Material: | Tungsten Carbide Insert |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FG |
IADC: | 635 | Supplementary Features: | G : Reinforced Gauge Protection |
Insert Shape: | Conical | Color: | Blue |
High Light: | Conical Insert Tricone Rock Bit,IADC 635 Blue Tricone Rock Bit,Sealed Roller Bearing Tricone Rock Bit |

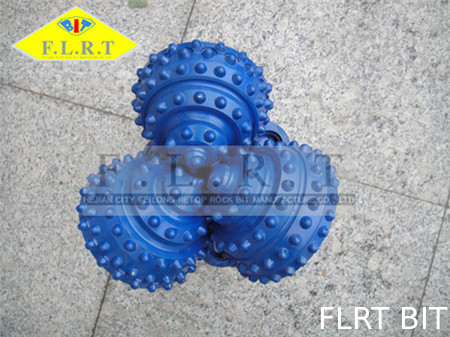

IADC 635 , Tricone Rock Bit , Water Well Drilling Bit , Oil Well Drilling Bit , Conical Insert
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code | 415 |
435 445 |
515 525 |
535 545 |
615 625 |
635 | |
WOB | KN/mm(Bit Dia.) | 0.35~0.95 | 0.35~0.95 | 0.4~0.7 | 0.4~0.7 | 0.45~1.1 | 0.5~1.2 |
Lb/in. (Bit Dia.) | 2000~5428 | 2000~5428 | 2285~4000 | 2285~4000 | 2571~6285 | 2857~6857 | |
Rotation Speed (Rpm) | 150~60 | 150~60 | 140~80 | 120~80 | 110~60 | 100~50 |
Bit hydraulics can have a large effect on penetration rate if the mud flow around the bit allows bit balling. It has been shown that directing jets to impact the formation immediately in front of the tooth-rock contact point for the heel rows can be beneficial as can the use of a central jet on large bits It is not clear a priori what features of the mud flow around the bit will influence bit balling, but the wetting of the drilled rock by the mud and the erosion of rock flour from the hole bottom have both be held to be important in limiting bit balling
