Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Sealed Journal Bearing With Gauge Protection | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
| IADC: | 517 | G: | Reinforced Gauge Protection |
| Shirttail: | Alloy Hard Facing | TCI: | Tungsten Carbide Insert |
| High Light: | 517 IADC Oil Well Drill Bit,Blue water well drill bits,Drill Cone Bit Medium Hard Formation |
||

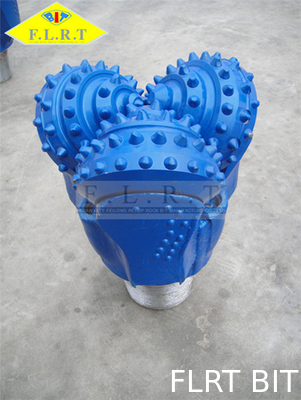

Tricone Rock Bit, Oil Well Drilling Bit , Medium Hard Formation , TCI Bit , Friction Bearing
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
|
Types & IADC Code |
417 |
437 447 |
517 527 |
517 527 |
537 547 |
617 627 |
637
|
|
|
WOB |
KN/mm(Bit Dia.) |
0.4~0.9 |
0.4~0.9 |
0.35~1.0 |
0.35~1.0 |
0.5~1.0 |
0.6~1.1 |
0.7~1.2 |
|
Lb/in. (Bit Dia.) |
2285~5142 |
2285~5142 |
2000~5714 |
2000~5714 |
2857~5714 |
3428~6285 |
4000~6857 |
|
|
Rotation Speed (Rpm) |
140~60 |
240~70 |
125~50 |
~60 |
110~50 |
100~40 |
80~4 |
|
- Donut-shaped O-rings are used in many roller-cone bit applications. O-rings are manufactured from elastomers (synthetic rubbers) that withstand the temperatures, pressures, and chemicals encountered in drilling environments. They are a traditional, but still consistently reliable, seal system.
- An O-ring is installed in a seal gland to form a seal system. The gland holds the O-ring in place and is sized so that the O-ring is compressed between the gland and the bearing hub at which sealing is required. It presses the interior wall of the O-ring against the hub and the exterior diameter of the O-ring against the gland. These latter forces prevent the seal from turning in the gland and experiencing wear on the outer surfaces by rotational contact with the gland
