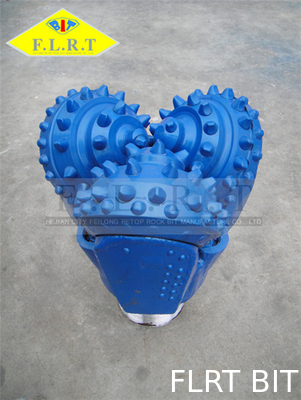

12 1/4" Tricone Rock Bit / HDD Drilling Tools IADC 517 With Reinforced Gauge Protection

12 1/4" Tricone Rock Bit / HDD Drilling Tools IADC 517 With Reinforced Gauge Protection
12 1/4" Tricone Rock Bit / HDD Drilling Tools IADC 517 With Reinforced Gauge Protection

Large Image :  12 1/4" Tricone Rock Bit / HDD Drilling Tools IADC 517 With Reinforced Gauge Protection

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 12 1/4 FA517G
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 300pcs per quarter
Detailed Product Description
Bearing Type: Sealed Friction Bearing With Gauge Protection Name: Tungsten Carbide Insert Bit
Standard: API-7-1, ISO 9001:2008 Series: FA
IADC: 517 Supplementary Features: G : Reinforced Gauge Protection
Application 1: HDD Drilling As Pilot Bit Application 2: Geothermal Well Drilling
Package: Plywood Box
High Light:

12 1/4" Tricone Rock Bit

,

HDD Drilling Tools IADC 517

,

Reinforced Gauge Protection HDD Drilling Tools

12 1/4" Tricone Rock Bit , IADC 517 , TCI Bit , HDD Drilling Pilot Bit , Reinforced Gauge Protection





RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code

417

437

447

517

527

517

527

537

547

617

627

637



WOB

KN/mm(Bit Dia.)

0.4~0.9

0.4~0.9

0.35~1.0

0.35~1.0

0.5~1.0

0.6~1.1

0.7~1.2

Lb/in. (Bit Dia.)

2285~5142

2285~5142

2000~5714

2000~5714

2857~5714

3428~6285

4000~6857

Rotation Speed (Rpm)

140~60

240~70

125~50

~60

110~50

100~40

80~4



Seal systems

- In general, seal systems are classified as either static or dynamic.

- Roller-cone bits use both types of seals.

- Dynamic seals involve sealing across surfaces that are moving in relationship to one another, as would be the case for a bearing seal.

- Seal parts or surfaces that do not move in relationship to one another during bit operation, such as the seal between a hydraulic nozzle and a bit to prevent leakage around the joint, are static seals.
