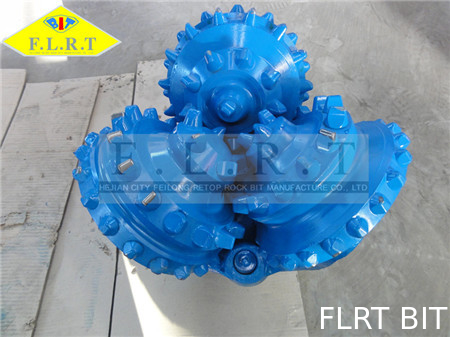

14 3/4" FSG515G Tungsten Carbide Insert Bit With Rubber Sealed Roller Bearing

14 3/4" FSG515G Tungsten Carbide Insert Bit With Rubber Sealed Roller Bearing
14 3/4" FSG515G Tungsten Carbide Insert Bit With Rubber Sealed Roller Bearing

Large Image :  14 3/4" FSG515G Tungsten Carbide Insert Bit With Rubber Sealed Roller Bearing

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1 , ISO 9001:2008
Model Number: 8 3/8 FG515GT
Payment & Shipping Terms:
Minimum Order Quantity: 1~5pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 200pcs per quarter
Detailed Product Description
Bearing Type: Rubber Sealed Roller Bearing Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FSG
Application 1: Oil Well Drilling Application 2: Gas Well Drilling
IADC: 515 Shirttail: Alloy Hard Facing Protection
TCI: Tungsten Carbide Insert
High Light:

FSG515G Tungsten Carbide Insert Bit

,

14 3/4" oilfield drill bits

,

7 5/8 inch oilfield drill bits

14 3/4" FSG515G , Rubber Sealed Roller Bearing , Reinforced Gage Protection , TCI Tricone Bit , Tricone Drill Bit



PRODUCT SPECIFICATIONGS



Bit Size : 14 3/4 inch ( 347.4 mm )

IADC : 515

SERIES : FSG

Tooth type : ( TC I) Tungsten Carbide Insert

Connection : 7 5/8 inch API REG PIN

Nozzle Three jet(side) nozzles,



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types &

IADC Code

415

435

445

515

525

535

545

615

625

635
WOB

KN/mm

(Bit Dia.)

0.35~0.95 0.35~0.95 0.4~0.7 0.4~0.7 0.45~1.1 0.5~1.2

Lb/in.

(Bit Dia.)

2000~5428 2000~5428 2285~4000 2285~4000 2571~6285 2857~6857
Rotation Speed (Rpm) 150~60 150~60 140~80 120~80 110~60 100~50


The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.





ROLLER CONE BIT CONE DESIGN



One important factor which affects journal angle is the degree of meshing or interfit (i.e. the distance that the crests of the teeth of one cone extend into the grooves of the other). The amount of interfit affects several aspects of bit design.



1. It allows increased space for tooth depth, more space for bearings and greater cone thickness
2. It allows mechanical cleaning of the grooves, thus helping to prevent bit balling
3. It provides space for one cone to extend across the centre of the hole to prevent coring effects
4. It helps the cutting action of the cones by increasing cone slippage.
