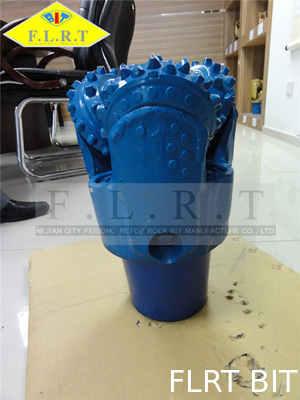

Customized Tungsten Carbide Insert Bit Shirttail Protection For Medium Hard

Customized Tungsten Carbide Insert Bit Shirttail Protection For Medium Hard
Customized Tungsten Carbide Insert Bit Shirttail Protection For Medium Hard

Large Image :  Customized Tungsten Carbide Insert Bit Shirttail Protection For Medium Hard

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 9 1/2" FSA517G
Payment & Shipping Terms:
Minimum Order Quantity: 1~10pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 300pcs per quarter
Detailed Product Description
Bearing Type: Sealed Journal Bearing With Gauge Protection Name: TCI Drill Bit
Standard: API-7-1, ISO 9001:2008 Series: FSA
IADC: 517 Supplementary Features 1: G : Reinforced Gauge Protection
Formation: Medium Hard
High Light:

tci drill bit

,

oilfield drill bits

9 1/2" FSA517G , Tungsten Carbide Insert Bit , Sealed Journal Bearing , Shirttail Protection , Tricone Drill Bit





RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 417

437

447

517

527

537

547

617

627

637
WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 140~60 125~50 110~50 100~40 80~40



The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.





The metallurgy of a bearing must be balanced to minimize heat generation during boundary lubrication. Cone-bearing surfaces are steel. Soft, silver-plated sleeves are installed on the journal. Silver polishes easily, and minor surface irregularities from machining are quickly smoothed. This smoothness ensures low-friction operation and uniform lubricant flow over the bearing surface.
