Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Rubber Sealed Roller Bearing | Cutting Material: | TCI |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FSG |
Application 1: | Oil Well Drilling | Application 2: | Gas Well Drilling |
IADC: | 515 | G: | Reinforced Gauge Protection |
Bit Size: | 13 1/2" ( 342.9mm ) | ||
High Light: | tci drill bit,milled tooth drill bit |

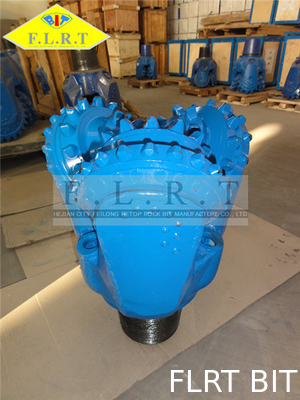

13 1/2" FSG515G, Rubber Sealed Roller Bearing , 342.9mm TCI Tricone Bit , Tricone Drill Bit
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code |
415 |
435 445 |
515 525 |
535 545 |
615 625 |
635 | |
WOB |
KN/mm (Bit Dia.) |
0.35~0.95 | 0.35~0.95 | 0.4~0.7 | 0.4~0.7 | 0.45~1.1 | 0.5~1.2 |
Lb/in. (Bit Dia.) |
2000~5428 | 2000~5428 | 2285~4000 | 2285~4000 | 2571~6285 | 2857~6857 | |
Rotation Speed (Rpm) | 150~60 | 150~60 | 140~80 | 120~80 | 110~60 | 100~50 |
Lubricants
High drilling temperatures and high pressures in the lubrication system, together with the potential of exposure to water and chemicals, require high performance from lubricants. Most bit lubricants are specially formulated. Leading bit manufacturers employ scientists to develop and test lubricants. Better drill-bit lubricants are stable to temperatures > 300°F, and many function normally at temperatures down to ≈0°F. They are hydrophobic (repel water) and retain their stability if water penetrates the bit. Quality lubricants are also resistant to chemicals commonly found in drilling fluids, are environmentally safe, and do not contain the lead additives that have traditionally helped resist high pressures.
-Lubricant supply. Roller-cone bits typically contain one lubricant reservoir in each leg (Fig. 7). Thus, for a three-cone bit, there are three reservoirs. Each must have the capacity for sufficient reserves of lubricant for operation of the bearing assembly it serves throughout the bit’s life.
-Pressure equalization and relief. A column of drilling fluids and cuttings contained in a well exerts very high pressures on a bit operating at the well bottom. These high pressures are applied to the seal system and must be resisted by lubricant in the seal and bearing system. At installation, lubricant is at atmospheric pressure and cannot provide significant resistance to well-bottom pressures. Accordingly, internal lubrication system pressures equalize themselves with external bit pressures to prevent seal failure caused by differential pressure. Equalization is accomplished by a small relief valve installed in the lubricant reservoir system.
