Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Journal Bearing | Cutting Material: | TCI |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
IADC: | 517 | Supplementary Features 1: | G : Reinforced Gauge Protection |
Bit Size: | 9 1/2" ( 241.3mm ) | Shirttail Protection: | Alloy Hard Facing |
High Light: | tci drill bit,milled tooth drill bit |

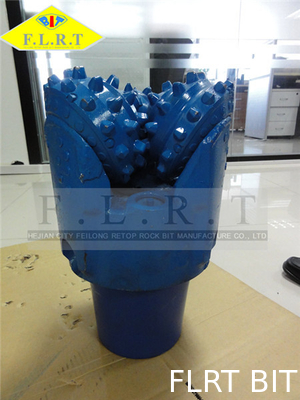

9 1/2" TCI Bit , 241.3mm Tricone Roller Bit , FSA517G 06 , Tricone Drill Bit , Sealed Journal Bearing
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code | 417 |
437 447 |
517 527 |
537 547 |
617 627 |
637 | |
WOB | KN/mm(Bit Dia.) | 0.4~0.9 | 0.4~0.9 | 0.35~1.0 | 0.5~1.0 | 0.6~1.1 | 0.7~1.2 |
Lb/in. (Bit Dia.) | 2285~5142 | 2285~5142 | 2000~5714 | 2857~5714 | 3428~6285 | 4000~6857 | |
Rotation Speed (Rpm) | 140~60 | 140~60 | 125~50 | 110~50 | 100~40 | 80~40 |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
Seal Systems
In general, seal systems are classified as either static or dynamic. Roller-cone bits use both types of seals. Dynamic seals involve sealing across surfaces that are moving in relationship to one another, as would be the case for a bearing seal. Seal parts or surfaces that do not move in relationship to one another during bit operation, such as the seal between a hydraulic nozzle and a bit to prevent leakage around the joint, are static seals.
