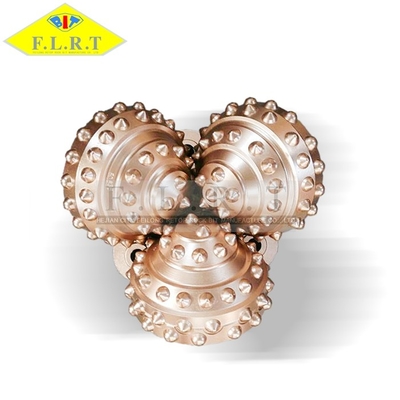

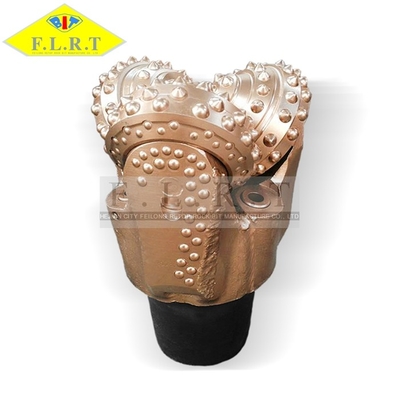

FLRT FK Series Tricone Roller Bit With Sealed Air Cooled Roller Bearing

FLRT FK Series Tricone Roller Bit With Sealed Air Cooled Roller Bearing
FLRT FK Series Tricone Roller Bit With Sealed Air Cooled Roller Bearing FLRT FK Series Tricone Roller Bit With Sealed Air Cooled Roller Bearing

Large Image :  FLRT FK Series Tricone Roller Bit With Sealed Air Cooled Roller Bearing

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 9 7/8 FK715G
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 2000 USD/pc
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays~45 workdays
Supply Ability: 300pcs per quarter
Detailed Product Description
Bearing Type: Sealed Air Cooled Roller Bearing Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FK
IADC: 715 Application: Mining
High Light:

three cone bit

,

roller cone drill bit

9 7/8" FK715G , Tricone Roller Bit, Sealed Air-Cooled Roller Bearing

FLRT FK Series Tricone Roller Bit With Sealed Air Cooled Roller Bearing 0PRODUCT SPECIFICATIONS



Bit Size : 9 7/8inch(250.8mm)

IADC : 7 1 5

SERIES : FK

Tooth type: ( TCI )Tungsten Carbide Insert

Connection: 6 5/8 inch API REG PIN

Nozzle : three je t(side) nozzles

Bit Weigh t: 65kgs



RECOMMENDED ROCK FORMATIONS



Designed for medium-hard and abrasive formations with high compressive strengths such as granite,limestone, sandstone, dolomite and chert.



SIZE AVAILABLE



From 6 1/4inch to 13 3/4inch



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 415 535 615 635 715 842
WOB KN/mm(Bit Dia.) 0.175~0.35 0.35~0.875 0.35~0.875 0.525~1.05 0.7~1.05 0.875~1.4
Lb/in. (Bit Dia.) 1000~2000 2000~5000 3000~5000 3000~6000 4000~6000 5000~8000
Rotation Speed (Rpm) 120~90 110~80 100~60 100~60 90~60 80~50

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
