|Bearing Type:||Rubber Sealed Journal Bearing With Gauge Protection||Cutting Material:||TCI|
|Standard:||API-7-1, ISO 9001:2008||Series:||FSA|
|Application 1:||Oil Well Drilling||Application 2:||Vertical Well Drilling|
|Application 3:||Geothermal Well Drilling||IADC:||437|
tungsten carbide drill bits,
oil well drill bit

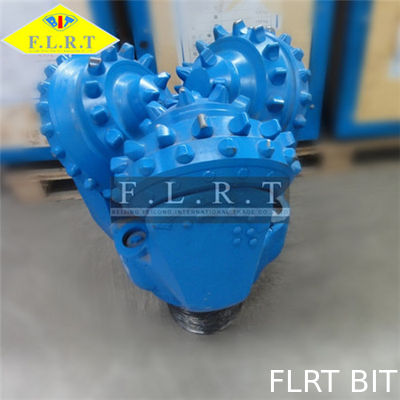

13 3/4" FSA437G, TCI Tricone Bit , TCI Bit , Sealed Journal Bearing , Oil Well Drilling Bit
Form 3 7/8inch to 18 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
|Types & IADC Code||417||
|Lb/in. (Bit Dia.)||2285~5142||2285~5142||2000~5714||2857~5714||3428~6285||4000~6857|
|Rotation Speed (Rpm)||140~60||140~60||125~50||110~50||100~40||80~40|
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
ROLLER CONE BIT FLUID CIRCULATION
Drilling fluid passes from the drillstring and out through nozzles in the bit. As it passes across the face of the bit it carries the drilled cutting from the cones and into the annulus. The original design for rock bits only allowed the drilling mud to be ejected from the middle of the bit . This was not very efficient and led to a build up of cuttings on the face of the bit (bit balling) and cone erosion. A more efficient method of cleaning the face of the bit was therefore introduced. The fluid is now generally ejected through three jet nozzles around the outside of the bit body . The turbulence created by the jet streams is enough to clean the cutters and allow efficient drilling to continue.
Donut-shaped O-rings are used in many roller-cone bit applications. O-rings are manufactured from elastomers (synthetic rubbers) that withstand the temperatures, pressures, and chemicals encountered in drilling environments. They are a traditional, but still consistently reliable, seal system.
