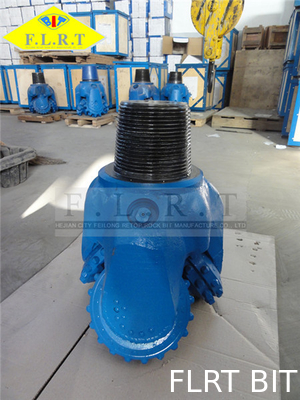

Durable TCI Tricone Bit / Three Cone Rock Bit With Reinforced Gauge Protection

Durable TCI Tricone Bit / Three Cone Rock Bit With Reinforced Gauge Protection
Durable TCI Tricone Bit / Three Cone Rock Bit With Reinforced Gauge Protection

Large Image :  Durable TCI Tricone Bit / Three Cone Rock Bit With Reinforced Gauge Protection

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1 , ISO 9001:2008
Model Number: 13 5/8" FSG515G
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 200pcs per quarter
Detailed Product Description
Bearing Type: Tricone Rock Roller Bits Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FSG
Application 1: Oil Well Drilling Application 2: Geothermal Well Drilling
IADC: 515 G: Reinforced Gauge Protection
High Light:

tungsten carbide insert bit

,

tungsten carbide drill bits

13 5/8" FSG515G , TCI Tricone Bit , Sealed Roller Bearing , Three Cone Rock Bit



SIZE AVAILABLE



From 3 7/8inch to 36inch



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 415

435

445

515

525

535

545

615

625

635
WOB

KN/mm

(Bit Dia.)

0.35~0.95 0.35~0.95 0.4~0.7 0.4~0.7 0.45~1.1 0.5~1.2

Lb/in.

(Bit Dia.)

2000~5428 2000~5428 2285~4000 2285~4000 2571~6285 2857~6857
Rotation Speed (Rpm) 150~60 150~60 140~80 120~80 110~60 100~50

The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.





Roller Cone Bit Bearing Seals



Roller-cone bearing seals operate in an exceptionally harsh environment. Drilling mud and most cuttings are extremely abrasive. Drilling fluids often contain chemicals, and operating temperatures can be sufficiently high to break down the elastomers from which seals are made. Pressure pulses often occur in downhole drilling fluids that apply lateral loading on seals that must be resisted.
