Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Non Sealed Air-Cooled Roller Bearing | Cutting Material: | Tungsten Carbide Insert |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FK |
| Application: | Mining | Formation: | Hard Formation With High Abrasiveness |
| IADC: | 732 | ||
| High Light: | tungsten carbide insert bit,oil well drill bit |
||

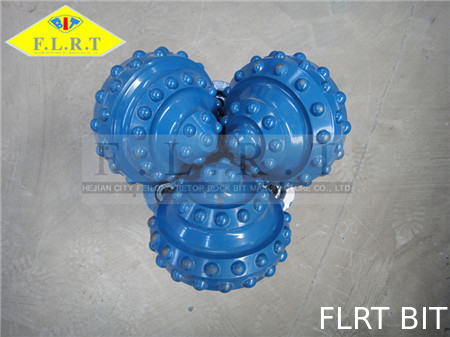

9 7/8" FK732G , Hard Rock Bit , Mining Bit , TCI Tricone Bit , Air-Cooled Circulation , Apply with Air Compressor
Circulation / Cooling System Type : Air
Main Application : Mining ( Blast Hole )
Apply with : Air Compressor
Formation : Hard with high abrasiveness
RECOMMENDED ROCK FORMATIONS
Designed for hard and high abrasive formations with high compressive strengths.
SIZE AVAILABLE
From 6 1/4inch to 13 3/4inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 412 | 432 | 542 | 642 | 732 | 842 | |
| WOB | KN/mm(Bit Dia.) | 0.175~0.35 | 0.175~0.7 | 0.35~0.875 | 0.525~1.05 | 0.7~1.22 | 0.875~1.4 |
| Lb/in. (Bit Dia.) | 1000~2000 | 1000~4000 | 2000~5000 | 3000~6000 | 4000~7000 | 5000~8000 | |
| Rotation Speed (Rpm) | 120~90 | 120~90 | 110~80 | 100~60 | 90~60 | 80~50 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
Mining is the extraction of valuable minerals or other geological materials from the earth, usually from an orebody, lode, vein, seam, reef or placer deposit. These deposits form a mineralized package that is of economic interest to the miner.
Ores recovered by mining include metals, coal, oil shale, gemstones, limestone, chalk, dimension stone, rock salt, potash, gravel, and clay. Mining is required to obtain any material that cannot be grown through agricultural processes, or created artificially in a laboratory or factory. Mining in a wider sense includes extraction of any non-renewable resource such as petroleum, natural gas, or even water.
