| Bearing Type: | Rubber Sealed Journal Bearing | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
| Application 1: | Oil Well Drilling / Gas Well Drilling | Application 2: | Geothermal Well Drilling |
| IADC: | 537 | ||
| High Light: | tungsten carbide insert bit,tungsten carbide drill bits |
||

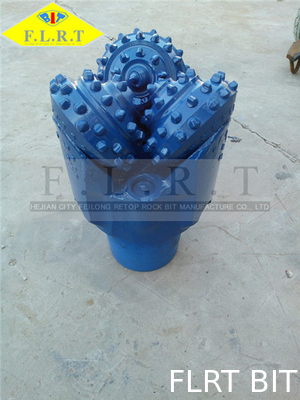

9 1/2" FSA537G , Rock Bit , Drill Bit , Sealed Journal Bearing , TCI Tricone Bit , Fluid Circulation
PRODUCT SPECIFICATIONS
Bit Size : 9 1/2 inch ( 241.3 mm)
IADC : 537
SERIES : FSA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 6 5/8 inch API REG PIN
Nozzle : three jet (side) nozzles
RECOMMENDED ROCK FORMATIONS
Adapted to be used in medium soft with harder, more abrasive streaks(hard shale, mudstone, soft limestone, sands etc)
SIZE AVAILABLE
Form 7 7/8inch to 17 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637
|
|
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
Rock bit classifications
- IADC prepared a comparison chart, in 1972
- Each bit is design by three code system
- First code classifies the cutting structure, 1-3 for teeth soft, medium and hard, 5-8 for insert, soft medium hard semi abrasive, extremely hard and abrasive, 4 for future
- Soft rock require long, slim and widely spaced teeth
- Medium requires short and less widely teeth
-Hard requires very short and closely spaced teeth
- Code 2 relates to formation hardness with division from 1 to 4 from softest to hardest
- Code 3 for mechanical features of the bit, sealed non-sealed etc
- Each company give there tables with IADC specifications
