| Brand Name: | FLRT |
| Model Number: | 9 5/8" FSA537G |
| MOQ: | 5pcs |
| Supply Ability: | 200pcs per quarter |

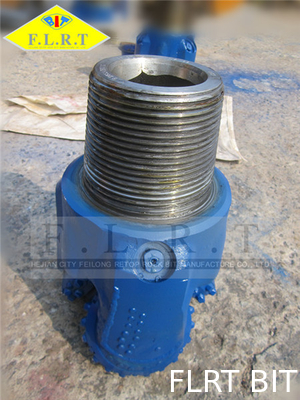

9 5/8" FSA537G , TCI Tricone Bit , Jetted Bit , Side Nozzles , Sealed Friction Bearing , HDD drilling pilot bit
SIZE AVAILABLE
Form 3 7/8inch to 18 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 417 |
437 447 |
517 527 |
537 547 |
617 627 |
637 | |
| WOB | KN/mm(Bit Dia.) | 0.4~0.9 | 0.4~0.9 | 0.35~1.0 | 0.5~1.0 | 0.6~1.1 | 0.7~1.2 |
| Lb/in. (Bit Dia.) | 2285~5142 | 2285~5142 | 2000~5714 | 2857~5714 | 3428~6285 | 4000~6857 | |
| Rotation Speed (Rpm) | 140~60 | 140~60 | 125~50 | 110~50 | 100~40 | 80~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
Application of Teeth and Tungsten Carbide Insert on Roller Cone Bit
- Length and geometry relate the rock strength
- Size of the cone and bearing structure affect the teeth
- Teeth design criteria are:
-- Spacing and interfitting of teeth governed by tooth strength, depth and included angle
-- Shape and length, dictated by formation characteristics
-- Types of teeth, milled or inserted
- Log slider and widely spaced teeth used for soft rock
- Long teeth allow results in breaking greater volume
- Wide spacing allows easy removal of drilled cuttings
- The included angle for soft rock from 39 to 42
- Medium hard would have a moderate number of teeth and 43 to 45 included angle
- Hard rocks need 45 to 50 included angle
- Milled teeth are faced with hardening metal to reduce wear
- Milled tooth bits are suitable for soft formation
- Insert are used for hard formation
- There are several types of insert to suit the hardness
- Chisel-shaped for soft rock
- Round or spherical for medium and hard rocks
