| Brand Name: | FLRT |
| Model Number: | 9 7/8" FA637G |
| MOQ: | 5pcs |
| Supply Ability: | 200pcs per quarter |

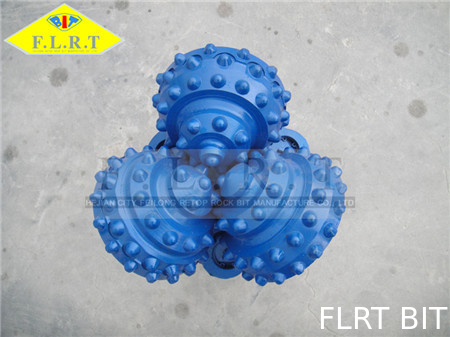

9 7/8" FA637G , Rock Bit , Drill Bit , Sealed Journal Bearing , TCI Tricone Bit , Medium Hard Formation with High Compressive Streaks
SIZE AVAILABLE
Form 7 7/8inch to 17 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637
|
|
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
Journal bearing
- The bearing load carrying surface
- Journal angle is the angle formed by a line perpendicular to the axis of the journal and the axis of the bit
- Magnitude affect the size of the cone
- Increase in angle decrease cone size
- The smaller the angle the greater the gouging and scraping action
- Optimum journal angle for soft and hard rock bits are 33 and 36
