|Bearing Type:||Sealed Friction Bearing With Gauge Protection||Cutting Material:||TCI|
|Standard:||API-7-1, ISO 9001:2008||Series:||FSA|
|Application 1:||Oil Well Drilling||Application 2:||Gas Well Drilling|
|Application 3:||Geothermal Well Drilling||Bit Size:||9 5/8" ( 244.5mm )|
tungsten carbide insert bit,
tungsten carbide drill bits

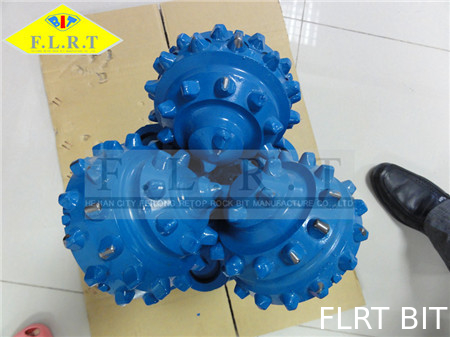

9 5/8" FSA517GT , TCI Tricone Bit , Sealed Friction Bearing , Trimming Cutter , Reinforced Gauge Protection
Form 3 7/8inch to 18 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
|Types & IADC Code||417||
|Lb/in. (Bit Dia.)||2285~5142||2285~5142||2000~5714||2857~5714||3428~6285||4000~6857|
|Rotation Speed (Rpm)||140~60||140~60||125~50||110~50||100~40||80~40|
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
ROLLER CONE BIT FLUID CIRCULATION
Drilling fluid passes from the drillstring and out through nozzles in the bit. As it passes across the face of the bit it carries the drilled cutting from the cones and into the annulus. The original design for rock bits only allowed the drilling mud to be ejected from the middle of the bit . This was not very efficient and led to a build up of cuttings on the face of the bit ( bit balling ) and cone erosion. A more efficient method of cleaning the face of the bit was therefore introduced. The fluid is now generally ejected through three jet nozzles around the outside of the bit body . The turbulence created by the jet streams is enough to clean the cutters and allow efficient drilling to continue.
Jet nozzles are small rings of tungsten carbide and are available in many sizes. The outside diameter of the ring is standard so that the nozzle can fit into any bit size. The size of the nozzle refers to the inner diameter of the ring. Nozzles are available in many sizes although diameters of less than 7/32″ are not recommended, since they are easily plugged. The nozzles are easily replaced and are fitted with an “O” ring seal . Extended nozzles may also be used to improve the cleaning action . The nozzles are made of tungsten carbide to prevent fluid erosion.
