Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Rubber Sealed Journal Bearing With Gauge Protection | Cutting Material: | Tungsten Carbide |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
| Application 1: | Oil Well Drilling | Application 2: | Gas Well Drilling |
| Application 3: | Geothermal Well Drilling | IADC: | 517 |
| T: | Trimming Cutter | G: | Reinforced Gauge Protection |
| High Light: | tungsten carbide drill bits,oil well drill bit |
||

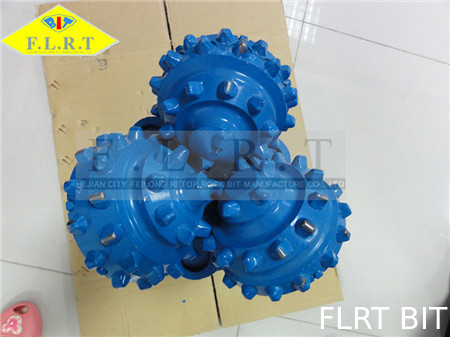

9 1/2" FSA517GT , TCI Tricone Bit , TCI Bit , Sealed Journal Bearing , With Trimming Cutter
SIZE AVAILABLE
Form 3 7/8 inch to 36 inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 417 |
437 447 |
517 527 |
537 547 |
617 627 |
637 | |
| WOB | KN/mm(Bit Dia.) | 0.4~0.9 | 0.4~0.9 | 0.35~1.0 | 0.5~1.0 | 0.6~1.1 | 0.7~1.2 |
| Lb/in. (Bit Dia.) | 2285~5142 | 2285~5142 | 2000~5714 | 2857~5714 | 3428~6285 | 4000~6857 | |
| Rotation Speed (Rpm) | 140~60 | 140~60 | 125~50 | 110~50 | 100~40 | 80~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
ROLLER CONE BIT FLUID CIRCULATION
Drilling fluid passes from the drill string and out through nozzles in the bit. As it passes across the face of the bit it carries the drilled cutting from the cones and into the annulus. The original design for rock bits only allowed the drilling mud to be ejected from the middle of the bit . This was not very efficient and led to a build up of cuttings on the face of the bit (bit balling) and cone erosion. A more efficient method of cleaning the face of the bit was therefore introduced. The fluid is now generally ejected through three jet nozzles around the outside of the bit body. The turbulence created by the jet streams is enough to clean the cutters and allow efficient drilling to continue.
