| Brand Name: | FLRT |
| Model Number: | 7 7/8 FA537GT |
| MOQ: | 5pcs |
| Supply Ability: | 200pcs per quarter |

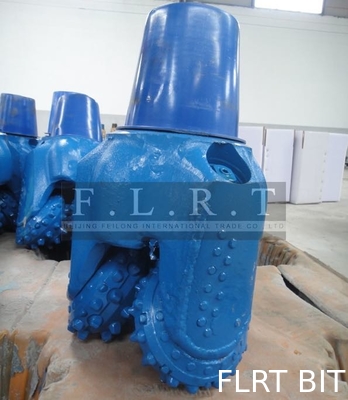

7 7/8" FA537GT , Rock Bit , Drill Bit , Sealed Journal Bearing , TCI Tricone Bit
PRODUCT SPECIFICATIONS
Bit Size : 7 7/8 inch ( 200 mm)
IADC : 537
SERIES : FA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 4 1/2 inch API REG PIN
Nozzle : three jet (side) nozzles
Bit Weight : 35kgs
RECOMMENDED ROCK FORMATIONS
Adapted to be used in medium soft with harder, more abrasive streaks(hard shale, mudstone, soft limestone, sands etc)
SIZE AVAILABLE
Form 7 7/8inch to 17 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637
|
|
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
