Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Sealed Journal Bearing With Gauge Protection | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
| Application 1: | Oil Well Drilling | Application 2: | Gas Well Drilling |
| Application 3: | Geothermal Well Drilling | Application 4: | Water Well Drilling |
| High Light: | tungsten carbide insert bit,tungsten carbide drill bits |
||

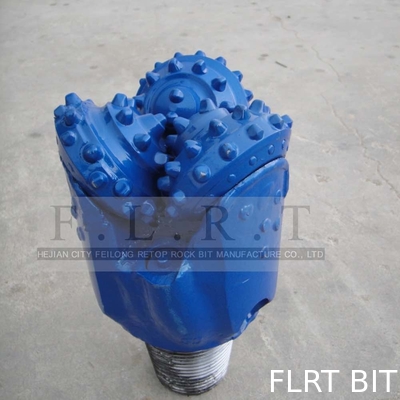

6 1/8" FA517G , TCI Tricone Bit , TCI Rock Bit , Sealed Bearing
PRODUCT SPECIFICATIONGS
Bit Size : 6 1/8" (155.6 mm)
IADC : 517
SERIES : FA
Cutting type: ( TCI ) Tungsten Carbide Insert
Connection : 3 1/2" API REG PIN
Nozzle : Three jet(side) nozzles
Bit weight: 14.5kgs
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637
|
|
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
