Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Rubber Sealed Journal Bearing | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
| Application 1: | Oil Well Drilling / Gas Well Drilling | Application 2: | Geothermal Well Drilling |
| IADC: | 537 | ||
| High Light: | tungsten carbide insert bit,tungsten carbide drill bits |
||

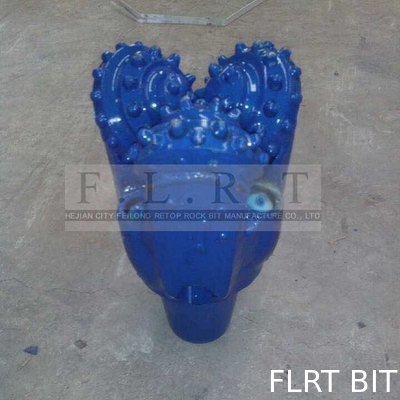

6" FA537G , TCI Tricone Bit , TCI Bit , Rubber Sealed Journal Bearing , IADC 537
PRODUCT SPECIFICATIONGS
Bit Size: 6 inch ( 152.4 mm)
IADC: 537
SERIES: FA
Tooth type: ( TC I) Tungsten Carbide Insert
Connection 3 1/2 inch API REG PIN
Nozzle Three jet(side) nozzles,
Bit Weight: 13kgs
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637
|
|
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
IADC Postfix - Supplementary Feature of Tricone Bit
A : Air Application
B: Special Bearing / Seal
C: Center Jet
D: Deviation Control
E: Extended Nozzles
G: Reinfored Gauge Protection
H: Horizontal Application
J: Jet Deflection
L: Lug Pads
M: Motor Application
S: Standard Milled Tooth
T: Trimming Cutter
X: Chisel Insert
Y: Conical Insert
Z: Other Shape Insert
