Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Journal Bearing With Gauge Protection | Cutting Material: | TCI |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
Application 1: | Oil Well Drilling / Gas Well Drilling / Geothermal Well Drilling | Application 2: | Water Well Drilling |
IADC: | 447 | ||
High Light: | tungsten carbide drill bits,oil well drill bit |

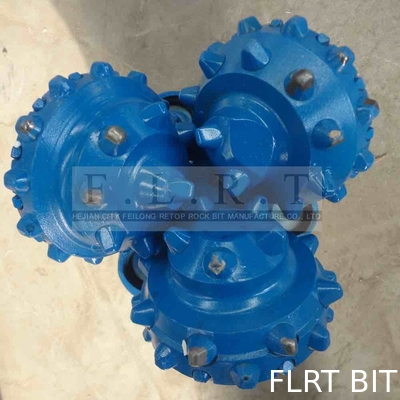

8 3/4" FA447G , TCI Tricone Bit , Rock Bit , Sealed Journal Bearing With Gauge Protection , Tricone Bit
PRODUCT SPECIFICATIONGS
Bit Size : 8 3/4" ( 222.3 mm)
IADC : 447
SERIES : FA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection thread : 4 1/2" API REG PIN
Nozzle : Three jet(side) nozzles,
Bit Weight: 43 kgs
FORMATION
Adept to medium soft formation.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637
|
|
WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
