Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Journal Bearing | Cutting Material: | Milled Tooth |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
Application: | Geothermal Well Drilling | IADC: | 126 |
Color: | Blue | ||
High Light: | tungsten carbide insert bit,tungsten carbide drill bits |

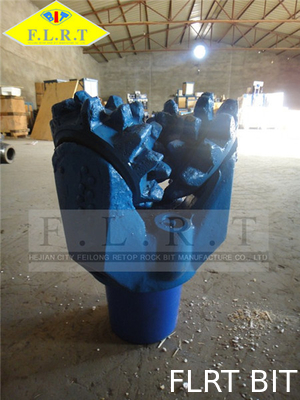

Steel Tooth Rotary Bit , TCI Tricone Bit , Sealed Journal Bearing , IADC 126
SIZE AVAILABLE
From 5 7/8inch to 18 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code |
116 117 |
126 127 |
136 137 |
216 217 |
246 247 |
326 327 |
|
WOB | KN/mm(Bit Dia.) | 0.48~1.0 | 0.48~1.0 | 0.48~1.0 | 0.4~1.0 | 0.4~1.0 | 0.55~0.85 |
Lb/in. (Bit Dia.) | 2742~5714 | 2742~5714 | 2742~5714 | 2285~5714 | 2285~5714 | 3140~4860 | |
Rotation Speed (Rpm) | 160~80 | 150~70 | 130~60 | 100~60 | 80~50 | 60~45 |
ROLLER CONE BIT FLUID CIRCULATION
Drilling fluid passes from the drillstring and out through nozzles in the bit. As it passes across the face of the bit it carries the drilled cutting from the cones and into the annulus. The original design for rock bits only allowed the drilling mud to be ejected from the middle of the bit . This was not very efficient and led to a build up of cuttings on the face of the bit (bit balling) and cone erosion. A more efficient method of cleaning the face of the bit was therefore introduced. The fluid is now generally ejected through three jet nozzles around the outside of the bit body . The turbulence created by the jet streams is enough to clean the cutters and allow efficient drilling to continue.
