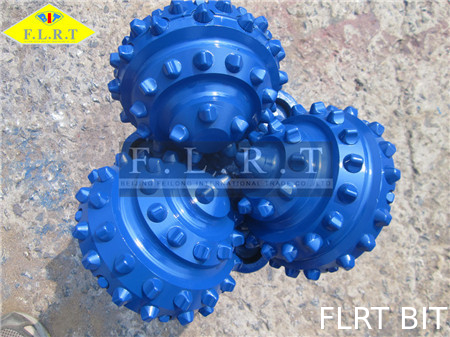

Oil Well Drilling TCI Tricone Bit 9 1/2" FSA537GT With Trimming Cutter

Oil Well Drilling TCI Tricone Bit 9 1/2" FSA537GT With Trimming Cutter
Oil Well Drilling TCI Tricone Bit 9 1/2" FSA537GT With Trimming Cutter

Large Image :  Oil Well Drilling TCI Tricone Bit 9 1/2" FSA537GT With Trimming Cutter

Product Details:

Place of Origin: China
Brand Name: FLRT
Certification: API-7-1 , ISO 9001:2008
Model Number: 9 1/2" FSA537GT

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 200pcs per quarter
Detailed Product Description
Bearing Type: Sealed Friction Bearing With Gauge Protection Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FSA
Application 1: Oil Well Drilling Application 2: Gas Well Drilling
Application 3: Geothermal Well Drilling G: Reinforced Gauge Protection
T: Trimming Cutter
High Light:

tungsten carbide insert bit

,

oil well drill bit

9 1/2" FSA537GT , TCI Tricone Bit , Sealed Friction Bearing , With Trimming Cutter , Oil Well Drilling Bit





SIZE AVAILABLE


Form 3 7/8inch to 18 1/2inch



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 417

437

447

517

527

537

547

617

627

637
WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 140~60 125~50 110~50 100~40 80~40



The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.





Bearings


- Functions:


    • Support radial load
    • Support thrust or axial loads
    • Secure the cone on the leg
- Supporting loads is achieved by outer and nose bearing
- Ball and friction bearings secure the cone on the leg
- Two different bearing are available: antifriction and friction
- Antifriction bearings or roller are two types: Roller-ball-roller (RBR), and roller-ball-friction
- RBR, nose roller; intermediate ball; and outer roller
- The ball secure the cone
- Size influenced by journal angle and cone size
- RBR suffers from spalling of the races of the pin
- RBR bit have short life
- Normally used with bit with diameter greater than 12.25 in with adequate space and in situation where high rotary speed is required
