|Bearing Type:||Rubber Sealed Journal Bearing||Cutting Material:||Milled Tooth|
|Standard:||API-7-1, ISO 9001:2008||Series:||FSA|
|Application 1:||Oil Well Drilling||Application 2:||Vertical Well Drilling|
|Application 3:||Geothermal Well Drilling|
tungsten carbide drill bits,
oil well drill bit

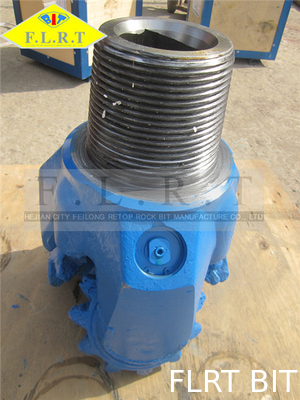

311.2mm Steel Tooth Tricone Bit , FSG126 , TCI Tricone Bit , Sealed Journal Bearing
From 5 7/8inch to 18 1/2inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
|Types & IADC Code||
|Lb/in. (Bit Dia.)||2742~5714||2742~5714||2742~5714||2285~5714||2285~5714||3140~4860|
|Rotation Speed (Rpm)||160~80||150~70||130~60||100~60||80~50||60~45|
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
Roller Cone Bit Bearing Seals
Roller-cone bearing seals operate in an exceptionally harsh environment. Drilling mud and most cuttings are extremely abrasive. Drilling fluids often contain chemicals, and operating temperatures can be sufficiently high to break down the elastomers from which seals are made. Pressure pulses often occur in downhole drilling fluids that apply lateral loading on seals that must be resisted.
On a purely practical level, bearing seals have two functions: to prevent foreign materials, such as mud, cuttings, chemicals, and water, from entering the bearings and to prevent bearing lubricant from escaping the bit.
Visualize the difference in the nature of these two duties. On the interior side, the seal is excluding clean, functional lubricant from escaping the bit, while on the exterior side, the seal is excluding dirt and chemicals from penetrating the bit. The separation of these two extremely different functions takes place at a small point between the two sides of a seal. If either of these functions breaks down, the bearings and the bit could be destined for failure.
