Product Details:
Payment & Shipping Terms:
|
Body Type: | Matrix | Cutting Material: | PDC |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Application 1: | Oil Well Exploration |
Application 2: | Gas Well Exploration | PDC: | Polycrystalline Diamond Cutter |
Formation: | Medium To Hard | ||
High Light: | pdc drill bits,natural diamond bit |

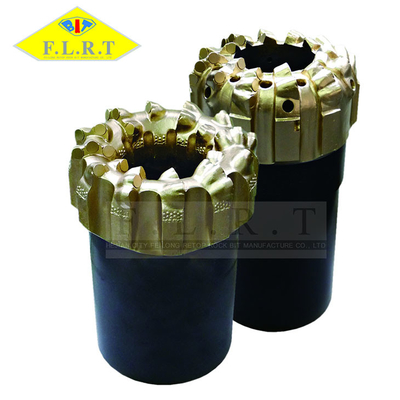

Matrix Body PDC Core Bit , High ROP , Exploration for Oil / Gas Well , Prospecting Project

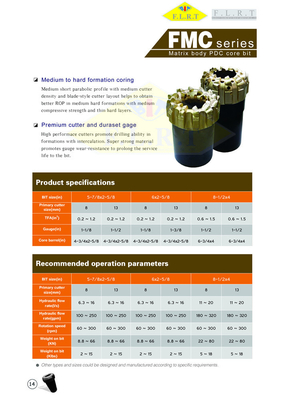

FMC series
Matrix body PDC core bit
* Medium to hard formation coring
Medium short parabolic profile with medium cutter density and blade-style cutter layout helps to obtain better ROP in medium hard formations with medium compressive strength and thin hard layers.
* Premium cutter and duraset gage
High performace cutters promote drilling ability in formations with intercalation. Super strong material promotes wear-resistance to prolong the service life to the bit.
Product Specifications | |||||||
Bit Size (in.) | 5 7/8x2 5/8 | 6x2 5/8 | 8 1/2x4 | ||||
Primary Cutter Size(mm) | 8 | 13 | 8 | 13 | 8 | 13 | |
TFA(in2) | 0.2~1.2 | 0.2~1.2 | 0.2~1.2 | 0.2~1.2 | 0.6~1.5 | 0.6~1.5 | |
Gauge(in) | 1 1/8 | 1 1/2 | 1 1/8 | 1 3/8 | 1 1/2 | 1 1/2 | |
Core barrel(in) | 4 3/4x2 5/8 | 4 3/4x2 5/8 | 4 3/4x2 5/8 | 4 3/4x2 5/8 | 6 3/4x4 | 6 3/4x4 |
Recommended Operation Parameters | ||||||||
Bit Size (in.) | 5 7/8x2 5/8 | 6x2 5/8 | 8 1/2x4 | |||||
Primary Cutter Size(mm) | 8 | 13 | 8 | 13 | 8 | 13 | ||
Hydraulic Flow Rate(L/s) | 6.3~16 | 6.3~16 | 6.3~16 | 6.3~16 | 11~20 | 11~20 | ||
Hydraulic Flow Rate(Gpm) | 100~250 | 100~250 | 100~250 | 100~250 | 180~320 | 180~320 | ||
Rotation Speed(Rpm) | 60~300 | 60~300 | 60~300 | 60~300 | 60~300 | 60~300 | ||
WOB(KN) | 8.8~66 | 8.8~66 | 8.8~66 | 8.8~66 | 22~80 | 22~80 | ||
WOB(KIbs) | 2~15 | 2~15 | 2~15 | 2~15 | 5~18 | 5~18 |
* Other types and sizes could be designed and manufactured according to the specific requirments.
