Easy Installation PDC Diamond Bit 10 5/8" Steel Body For Gas Well Drilling

Easy Installation PDC Diamond Bit 10 5/8" Steel Body For Gas Well Drilling
Easy Installation PDC Diamond Bit 10 5/8" Steel Body For Gas Well Drilling

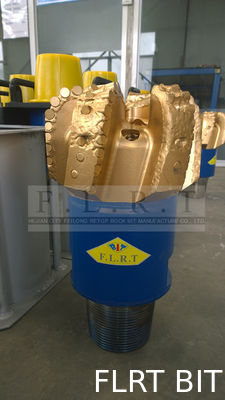

Large Image :  Easy Installation PDC Diamond Bit 10 5/8" Steel Body For Gas Well Drilling

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 10 5/8" FS1606
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: plywood box / iron box
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50pcs per week
Detailed Product Description
Body Type: Steel Cutting Material: PDC
Standard: API-7-1, ISO 9001:2008 Series: FS
Blade Number: 6 Application: Gas Well Drilling
Main Cutter Size: 16mm
High Light:

Gas Well Drilling pdc drill bits

,

Easy Installation PDC Diamond Bit

,

Steel Body PDC Diamond Bit

10 5/8" Steel Body PDC Bit , Gas well drilling , Vertical Well Drilling



FS series



Steel body PDC drill bit



* Soft to medium hard formation drilling



Medium short parabolic crown profile and medium cutter density helps to obtain better ROP in soft to medium hard formation with lower compressive strength and thin hard layers.



* Gauge protection



Gauge cutter improves the gage wear-resistance to prolong the service life of the bit.



* Unique backrack design



Unique backrack design helps to reduce the bit torque and increase its aggressiveness.

Size Range of Steel Body PDC bit : From 3" to 26".

Product Description



1. Cutting structure is force balanced and bit blade is asymmetrically designed so that the load on bit is balanced that resulting better stability of the bit.

2. Main cutters are high performance PDC cutters to insure service life of the bit while improving ROP.

3. Cutters exposure is optimized to insure the bit can achieve higher ROP with soft to medium formations.

4. Shock absorbers are designed to make the bit capable of drilling through formations with hard strigers.

5. Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance cleaning and cooling effects of the bit to effectively prevent bit from balling.
