Bearing Type: | Sealed Roller | Cutting Material: | Steel Tooth |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
Bit Size: | 374.7mm | Name: | Steel Tooth Rotary Bits |
High Light: | mill tooth tricone bit,steel tooth rotary bits |

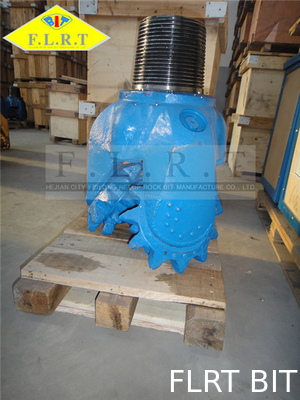

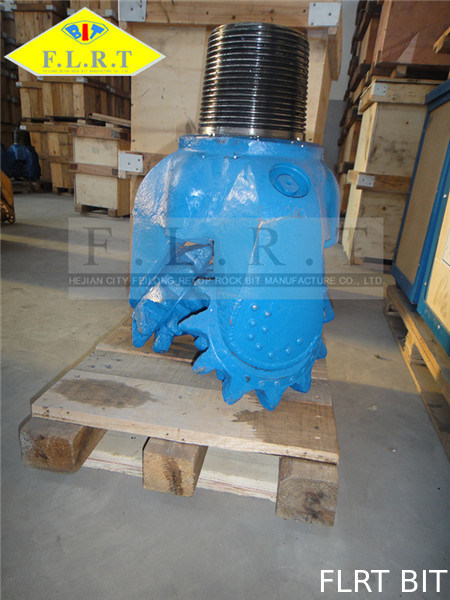

374.7mm FSA124G , Tooth Tricone Bit , Sealed Roller Bearing , Water Well Drilling , Vertical Well Drilling
RECOMMENDED ROCK FORMATIONS
Adapted to be used in very soft to medium soft with low compressive strength and high drillability (mudstone, loose sands, soft limestone, shale, etc.)
SIZE AVAILABLE
From 5 7/8inch to 26 inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code |
116 117 |
126 127 |
136 137 |
216 217 |
246 247 |
326 327 |
|
WOB | KN/mm(Bit Dia.) | 0.48~1.0 | 0.48~1.0 | 0.48~1.0 | 0.4~1.0 | 0.4~1.0 | 0.55~0.85 |
Lb/in. (Bit Dia.) | 2742~5714 | 2742~5714 | 2742~5714 | 2285~5714 | 2285~5714 | 3140~4860 | |
Rotation Speed (Rpm) | 160~80 | 150~70 | 130~60 | 100~60 | 80~50 | 60~45 |
Features
1. The strength and wear resistance of inserts are improve by using carbide inserts with high strengthand high wear resistance.
2. Surface of the high precision bearing heat treated by using advanced heat treatment process to improve the load capacity and service life of the bearing.
3. The service life of the bearing is further extended by adopting harder and mort wear resistant material for thrust bearing.
4. Preventing reflux structure has dual function, it can avoid air counterflow and dust entering into bearing when the air-compressor stop working accidentally, and separate air and water in order to avoid water entering into bearing when it works normally to prolong the life of bearing.
