Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Sealed Journal Bearing | Cutting Material: | Steel Tooth |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
| IADC: | 127 | Name: | Mill Tooth Tricone Bit |
| Bit Size: | 14 3/4" | G: | Reinforced Gauge Protection |
| Tooth Protection: | Alloy Hard Facing | ||
| High Light: | rotary drill bit,steel tooth rotary bits |
||

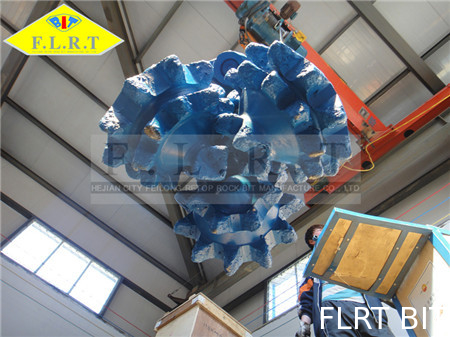

14 3/4" FSA127G , Milled Tooth Tricone Bit , Sealed Journal Bearing with Gauge Protection , Rotary Roller Cone Bit
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code |
116 117 |
126 127 |
136 137 |
216 217 |
246 247 |
326 327 |
|
| WOB | KN/mm(Bit Dia.) | 0.48~1.0 | 0.48~1.0 | 0.48~1.0 | 0.4~1.0 | 0.4~1.0 | 0.55~0.85 |
| Lb/in. (Bit Dia.) | 2742~5714 | 2742~5714 | 2742~5714 | 2285~5714 | 2285~5714 | 3140~4860 | |
| Rotation Speed (Rpm) | 160~80 | 150~70 | 130~60 | 100~60 | 80~50 | 60~45 | |
1. Ehanced hardfacing for steel tooth with proper tenacity
2. Sharp tooth highly increase the footage
3. ISO9001 n API certificate
4. Strong wear resistant teeth and high ROP, more stably, suit for driling in soft formation with fast rotary speed.
5.This series oil well rock bit use Sealed roller bearing structure. With rollers arranged in grooves recessed in the cone body, the size of the bearing journal is increased.
6. Thrust bearing surfaces are hardfaced and treated with friction reducing technology.
7. This series oil well rock bit use Journal bearing. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.
