6 - 26 Inch Steel Tooth Tricone Bit / Roller Cone Bit With Gauge Protection

Certification
China FLRT Bit certification
China FLRT Bit certification
Good result of the FLRT natural diamond drill bit. Thank you.

—— Bryan

We have ordered the tricone bits to drill shallow oil well and some times make hdd hole openers. The quality is good

—— Petter

I'm Online Chat Now

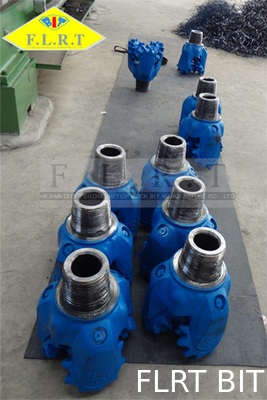

6 - 26 Inch Steel Tooth Tricone Bit / Roller Cone Bit With Gauge Protection

6 - 26 Inch Steel Tooth Tricone Bit / Roller Cone Bit With Gauge Protection
6 - 26 Inch Steel Tooth Tricone Bit / Roller Cone Bit With Gauge Protection

Large Image :  6 - 26 Inch Steel Tooth Tricone Bit / Roller Cone Bit With Gauge Protection

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 13 3/4" FSA126G
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc for in stock bits, 10 pcs for non in stock bits.
Packaging Details: plywood box / iron box
Delivery Time: 5 workdays for in stock bits 30 ~45 workdays for non in stock bits.
Supply Ability: 300 pcs per quarter
Detailed Product Description
Bearing Type: Sealed Journal Bearing Cutting Material: Steel Tooth / Milled Tooth
Standard: API-7-1, ISO 9001:2008 Series: FSA
IADC: 126 Application 1: Oil Well Drilling
Application 2: Vertical Well Drilling Application 3: Water Well Drilling
High Light:

rotary drill bit

,

steel tooth rotary bits

13 3/4" FSA126G , Tricone Bit , Sealed Journal Bearing , with Gauge Protection , Milled Tooth , Roller Cone Bit



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code

116

117

126

127

136

137

216

217

246

247

326

327

WOB KN/mm(Bit Dia.) 0.48~1.0 0.48~1.0 0.48~1.0 0.4~1.0 0.4~1.0 0.55~0.85
Lb/in. (Bit Dia.) 2742~5714 2742~5714 2742~5714 2285~5714 2285~5714 3140~4860
Rotation Speed (Rpm) 160~80 150~70 130~60 100~60 80~50 60~45





Milled tooth bits





1, Soft formations ( IADC 114 - 117 )



These bits are designed to drill the softest formations such as soft shales,red beds, and clays, with high durability and maximum penetration rates.



2, Soft to medium formations( IADC 121,124,126,134,136,137 )

These bits are designed to drill formations such as shales, medium soft limestone, Medium sandstone and other formations with intermittent hard streaks.



3, Medium to hard formations ( IADC 213,214,215,217 )

These bits are designed to drill formations such as hard sandstone, dolomite, and broken formations with hard cherty streaks





Bit Size Range 6-26( inch)
Type Tricone bits, Steel tooth bits, PDC bits
Applicable water well, oil field, construction, geothermal, directional boring, and underground foundation work
Formation sticky, soft, medium hard, hard formation
Bearing rubber seal or metal seal
Packing wooden box, steel box, or as your requirements
Payment Term T/T or L/C at sight
MOQ 1 Piece
Supply Ability 1000 Pieces/month
Delivery Time within 7 work days
