Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Sealed Journal Bearing | Cutting Material: | Tungsten Carbide Insert |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
| IADC: | 437 | Name: | Tungsten Carbide Drill Bits |
| Rock Formation: | Low Compressive Strength, Very Soft Formations | ||
| High Light: | rotary drill bit,mill tooth tricone bit |
||

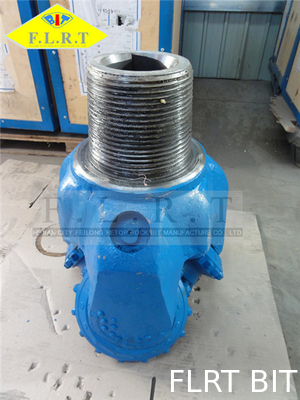

13 3/4" FSA437G , TCI Tricone Bit , Sealed Journal Bearing , Tungsten Carbide Insert Bit , 6 5/8" API Reg. PIN
Three Cone Rock bits are sophisticated products made from high quality materials (steel forging, carbide, and others).
Three Cone Rock bits are designed for a multitude of drilling applications including: Gas and Oil production, Mining and Mineral Exploration, Water Well production, Construction, Horizontal and Directional, Geotech, Environmental, and a variety of other industrial uses.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637 | |
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 240~70 | 220~60 | 220~50 | 200~50 | 180~40 | |
The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.
Contact Person: Jade
Tel: 0086-10-63405086
