Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Sealed Journal With Gauge Protection | Name: | Tci Drill Bit |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
| Nozzle Number: | Three | Shirttail Protection: | Alloy Hard Facing |
| Connection: | 6 5/8" API REG. PIN | ||
| High Light: | mill tooth tricone bit,steel tooth rotary bits |
||

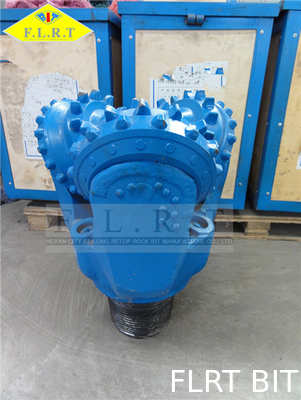

13 1/2" FSA437G , TCI Bit , TRC Bit , Jetted Bit , Hard Facing on Shirtail , Extra Gauge Protection
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637 | |
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 240~70 | 220~60 | 220~50 | 200~50 | 180~40 | |
Medium formation TCI tricone bits:
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
TCI (TUNGSTEN CARBIDE INSERT) BITS
IADC 4 SERIES DRILL BITS 4XX
These bits are used to drill low compressive strength, very soft formations. The bits maximize the use of both conical and chisel inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit balling in sticky formations.
