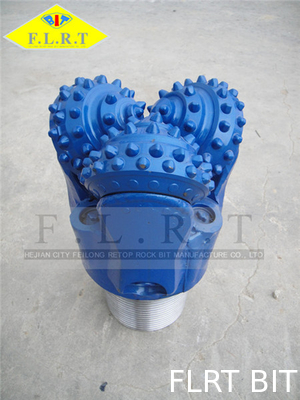

9 1/2" FSA537G TCI Tricone Bit / Oil Well Drill Bit With Sealed Friction Bearing

9 1/2" FSA537G TCI Tricone Bit / Oil Well Drill Bit With Sealed Friction Bearing
9 1/2" FSA537G TCI Tricone Bit / Oil Well Drill Bit With Sealed Friction Bearing

Large Image :  9 1/2" FSA537G TCI Tricone Bit / Oil Well Drill Bit With Sealed Friction Bearing

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1 , ISO 9001:2008
Model Number: 9 1/2" FSA537G
Payment & Shipping Terms:
Minimum Order Quantity: 1~10pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 200pcs per quarter
Detailed Product Description
Bearing Type: Sealed Friction Bearing Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FSA
Application 1: Oil Well Drilling Application 2: Vertical Well Drilling
Application 3: Geothermal Well Drilling Bit Size: 9 1/2" ( 241.3 Mm )
High Light:

tungsten carbide drill bits

,

oil well drill bit

9 1/2" FSA537G , TCI Tricone Bit , Oil Well Drilling Bit , Sealed Friction Bearing





SIZE AVAILABLE


Form 3 7/8inch to 18 1/2inch



RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 417

437

447

517

527

537

547

617

627

637
WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 140~60 125~50 110~50 100~40 80~40



The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.



Jet nozzles are small rings of tungsten carbide and are available in many sizes. The outside diameter of the ring is standard so that the nozzle can fit into any bit size. The size of the nozzle refers to the inner diameter of the ring. Nozzles are available in many sizes although diameters of less than 7/32″ are not recommended, since they are easily plugged. The nozzles are easily replaced and are fitted with an “O” ring seal .



Extended nozzles may also be used to improve the cleaning action . The nozzles are made of tungsten carbide to prevent fluid erosion.
