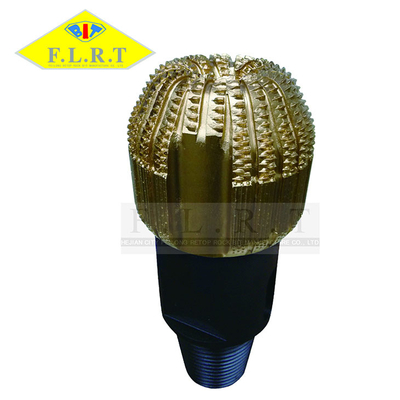

Martrix Body Polycrystalline Diamond Cutting Tools , PDC Bit For Well Drilling

Martrix Body Polycrystalline Diamond Cutting Tools , PDC Bit For Well Drilling
Martrix Body Polycrystalline Diamond Cutting Tools , PDC Bit For Well Drilling Martrix Body Polycrystalline Diamond Cutting Tools , PDC Bit For Well Drilling

Large Image :  Martrix Body Polycrystalline Diamond Cutting Tools , PDC Bit For Well Drilling

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: FP Series
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: plywood box / iron box
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50pcs per week
Detailed Product Description
Name: Polycrystalline Diamond Drill Bits Cutting Material: TSP
Standard: API-7-1, ISO 9001:2008 TSP: Thermal Stable Polycrystalline
Maximum Temperature: 1200 ℃ Formation: Medium Hard To Hard
High Light:

pdc drill bits

,

impregnated diamond bit

Thermal Stable Polycrystalline Bit , TSP Bit , Ballaset Cutters , Martrix Body​

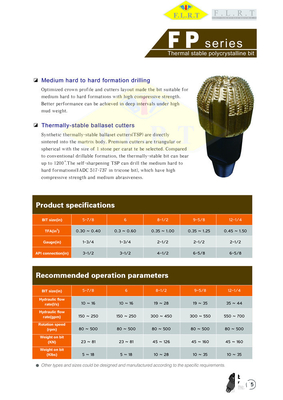

FP series



Thermal stable polycrystalline bit



* Medium hard to hard formation drilling



Optimized crown profile and cutters layout made the bit suitable for medium hard to hard formations with high compressive strength. Better performance can be achicvend in deep intervals under high mud weight.



* Thermally-stable ballaset cutters



Synthetic thermally-stable ballaset cutters(TSP) are directly sintered into the martrix body. Premium cutters are triangular or spherical with the size of stone per carat to be selected. Compared to conventional drillable formation, the thermally-stable bit can bear up to 1200 ℃ . The self-sharpening TSP can drill the medium hard to hard formations(1 ADC 517-737 in tricone bit), which have high compressive strength and medium abrasiveness.



Product Specifications
Bit Size (in.) 5 7/8 6 8 1/2 9 5/8 12 1/4
TFA(in2) 0.30~0.40 0.3~0.60 0.35~1.00 0.35~1.25 0.45~1.50
Gauge(in) 1 3/4 1 3/4 2 1/2 2 1/2 2 1/2
API connection(in) 3 1/2 3 1/2 4 1/2 6 5/8 6 5/8



Recommended Operation Parameters
Bit Size (in.) 5 7/8 6 8 1/2 9 5/8 12 1/4
Hydraulic Flow Rate(L/s) 10~16 10~16 19~28 19~35 35~44
Hydraulic Flow Rate(Gpm) 150~250 150~250 300~450 300~550 550~700
Rotation Speed(Rpm) 80~500 80~500 80~500 80~500 80~500
WOB(KN) 23~81 23~81 45~126 45~160 45~160
WOB(KIbs) 5~18 5~18 10~28 10~35 10~35



* Other types and sizes could be designed and manufactured according to the specific requirments.
