7 1/2" PDC Diamond Bit , Steel Drill Bits IADC S323 4 1/2” API REG PIN With 5 Blades

7 1/2" PDC Diamond Bit , Steel Drill Bits IADC S323 4 1/2” API REG PIN With 5 Blades
7 1/2" PDC Diamond Bit , Steel Drill Bits IADC S323 4 1/2” API REG PIN With 5 Blades

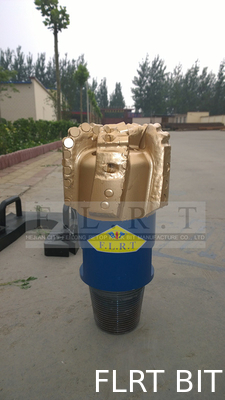

Large Image :  7 1/2" PDC Diamond Bit , Steel Drill Bits IADC S323 4 1/2” API REG PIN With 5 Blades

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 7 1/2 FS19053I
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: plywood box / iron box
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50pcs per week
Detailed Product Description
Name: Steel Drill Bits Cutting Material: PDC
Standard: API-7-1, ISO 9001:2008 Series: FS
Size: 190.5mm Blade Number: 5
High Light:

impregnated diamond bit

,

natural diamond bit

7 1/2" Steel Body PDC Bit , IADC S323 , 4 1/2” API REG.PIN , 5 Blades



FS series



Steel body PDC drill bit



*  Soft to medium hard formation drilling



Medium short parabolic crown profile and medium cutter density helps to obtain better ROP in soft to medium hard formation with lower compressive strength and thin hard layers.



* Gauge protection

Gauge cutter improves the gage wear-resistance to prolong the service life of the bit.



* Unique backrack design

Unique backrack design helps to reduce the bit torque and increase its aggressiveness.



*Depth-control pad

enhancing the ability to drill through soft and hard interbeded formations and protect PDC cutters.



* Inclined gage

forece-balanced that resulting better stability of the bit.



* Double row cutters
penetration ability and wear-resistance of thebit in medium hard formation can beimproved.
